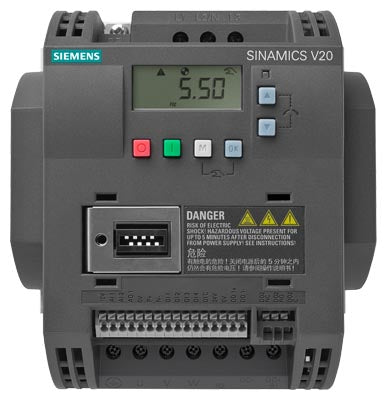

Siemens V20 Sinamics Inverter drive, 2.2kW, 3-phase, 400VAC, 4.8A, 5.6A Part number 6SL3210-5BE22-2CV1

Product Overview

The Siemens SINAMICS V20 (SKU: 6SL3210-5BE22-2CV1) is a compact frequency converter designed for three-phase motors operating at 380–480 V AC (–15 % / +10 %, 47–63 Hz). It delivers approximately 2.2 kW output power and offers a 150 % overload capacity for up to 60 seconds. Engineered for simple and cost-effective motor control, the SINAMICS V20 provides reliable performance, integrated control functions, and flexible mounting options suitable for a wide range of industrial and commercial applications.

Key Features

• Rated output power: 2.2 kW (three-phase, 380–480 V AC)
• Overload capacity: 150 % for 60 seconds
• Wide input voltage range: 380–480 V AC (–15 % / +10 %)
• Integrated I/O and control functionality for basic automation tasks
• Compact design enabling easy installation and side-by-side panel mounting
• Energy-efficient operation with fast commissioning and setup

Technical Specifications

• Product Family: SINAMICS V20
• Article Number: 6SL3210-5BE22-2CV1
• Input Voltage: 380–480 V AC (three-phase, –15 % / +10 %)
• Input Frequency: 47–63 Hz
• Rated Output Power: 2.2 kW
• Overload Capability: 150 % for 60 seconds
• Enclosure Protection: IP20 (when installed)
• Approximate Dimensions: 90 mm (W) × 166 mm (H) × 145.5 mm (D)
• Cooling: Integrated temperature-controlled fan
• Operating Temperature Range: –10 °C to +50 °C (without derating)
• Country of Origin: China

Compliance & Certifications

• CE compliant and certified under EN 61800-5-1 / EN 61800-3 standards
• RoHS and REACH compliant
• Meets EU Machinery and EMC Directive requirements
• Designed and manufactured according to Siemens industrial quality standards

Applications

Ideal for variable-speed control of three-phase asynchronous motors in applications such as pumps, fans, compressors, conveyor systems, and machine tools. The SINAMICS V20 offers a durable and economical solution for small to medium-sized machines requiring reliable motor control, reduced energy consumption, and simplified commissioning.
