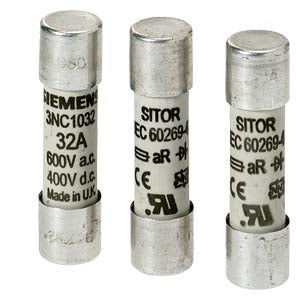

Siemens Sitor cylindrical fuse link, 600V, 32A, 10 x 38mm

Product Overview

The Siemens 3NC1032 is a high-performance SITOR cylindrical fuse link designed specifically for semiconductor protection applications. This 32A rated fuse provides exceptional protection for AC circuits up to 600V, featuring an aR operating class for full-range semiconductor protection. This ultra-fast acting fuse is engineered to protect sensitive power semiconductors and electronic components in demanding industrial applications.

Key Features:

• Rated current: 32A with aR operating class for semiconductor protection
• Voltage rating: 600V AC with enhanced DC capabilities up to 700V (UL rated)
• Compact 10 x 38mm cylindrical design for space-efficient installations
• Ultra-fast acting switch-off characteristics compared to conventional LV HRC fuses
• SITOR technology specifically designed for power semiconductor protection
• Breaking capacity: 100kA for superior protection performance
• Operating frequency: 45-62 Hz for versatile applications

Applications:

Specifically designed for protecting high-quality devices and electronic components including semiconductor contactors, electronic relays (solid state), frequency converters with fuses in input and DC intermediate circuits, UPS systems, and soft-starters for motors up to 100A. Essential for applications requiring reliable protection of power semiconductors from short-circuit effects in industrial automation and power electronics systems.

Technical Advantages:

• Extremely fast-acting switch-off characteristic provides superior semiconductor protection
• Power semiconductors are reliably protected even during short-circuit conditions
• Siemens quality standard ensures excellent characteristic curve accuracy
• Global approvals (IEC, UL, CCC) enable worldwide application
• Compatible with LV HRC fuse bases, fuse switch disconnectors, and switch disconnectors with fuses
• Effective protection for personnel, equipment, and systems through reliable shutdown
• Superior performance in frequency converter and UPS system applications

SENTRON System Integration:

As an important element of the SENTRON protective component line for electronic installations, the SITOR fuse system from Siemens provides effective protection for personnel, equipment and plants with reliable shutdown in the event of an overload or short circuit. The system offers comprehensive protection solutions for modern industrial and commercial electrical installations.

Standards Compliance:

Approved according to IEC and UL standards with CCC certification for global use. Part of the SENTRON protective component line ensuring compliance with international safety and performance standards for semiconductor protection applications. Operating class aR (partial range converter protection) provides specialized protection characteristics.

Installation Features:

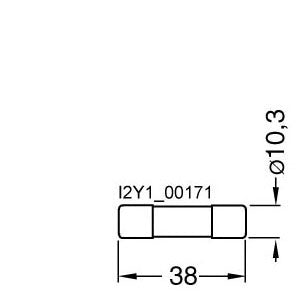

• Standard fuse size of 38mm (L) x 10.3mm (D) offers broad compatibility
• Lightweight design at 9g minimizes strain on assembly
• Suitable for installation in LV HRC fuse bases and switch disconnectors
• aR utilization category provides very fast disconnection characteristics
• Quick response time for electrical overload protection

Physical Specifications:

• Net weight: 0.009 kg
• Fuse dimensions: 10 x 38mm (0.4" x 1.5")
• Packaging dimensions: 10 x 25 x 10 mm
• Country of origin: India
• EAN: 4011209569942
• UPC: 754554967752

Environmental Compliance:

RoHS compliant since July 1, 2006. WEEE (2012/19/EU) take-back obligation applies. Contains lead as disclosed under REACH Article 33 requirements. Return restricted product classification - please contact your Siemens partner for return procedures.

Shipping Details:

• Minimum order quantity: 10 pieces
• Product lifecycle: PM300 Active Product
