Product Overview

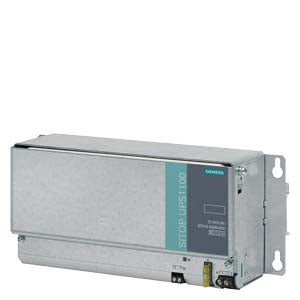

Battery Module with Pure Lead-Acid Battery for SITOP UPS1600 DC UPS Modules

The SITOP UPS1100 Battery Module 6EP4132-0GB00-0AY0 is a maintenance-free sealed pure lead-acid battery module designed specifically for SITOP UPS1600 DC UPS modules. This high-performance 24V DC, 2.5 Ah battery module provides reliable backup power with intelligent battery management and temperature-controlled charging.

Key Features

• Maintenance-Free Operation: Sealed pure lead-acid battery technology requires no maintenance
• Intelligent Battery Management: Automatic detection and optimal temperature-controlled charging via Energy Storage Link
• High Reliability: Industrial-grade design with integrated electronics for monitoring and diagnostics
• Flexible Installation: Can be mounted on standard DIN rail TH35×15 or directly to wall
• Parallel Connection: Up to 6 battery modules can be connected in parallel for extended backup times
• Integrated Protection: Built-in fuse protection (25A/32V) and reverse polarity protection
• LED Status Indication: Green LED for battery status and communication with UPS1600

Technical Specifications

Electrical Characteristics:

• Voltage: 24V DC
• Capacity: 2.5 Ah
• Output Current (rated): 20A
• Power Boost: 60A for 30ms
• Extra Power: 30A for 5s/min
• Battery Type: Maintenance-free sealed pure lead-acid (Hawker Energy CYCLON 0810-0075)

Physical Specifications:

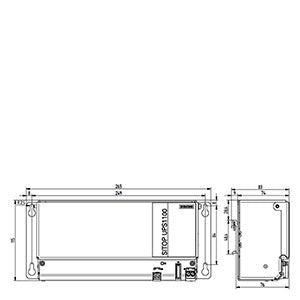

• Dimensions (W × H × D): 265 × 115 × 76 mm
• Weight: Approximately 3.7 kg
• Mounting: DIN rail TH35×15 or wall mounting
• Protection Rating: IP20
• Housing: Industrial-grade plastic enclosure

Environmental Conditions:

• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +60°C
• Humidity: 5-95% (non-condensing)
• Altitude: Up to 2000m above sea level

Performance & Backup Times

Backup Time Performance (typical values):

• 1A load: 1.7 hours
• 2A load: 54.6 minutes
• 3A load: 32.9 minutes
• 5A load: 20.6 minutes
• 10A load: 7.2 minutes
• 20A load: 2.9 minutes

Compatibility

• Compatible with SITOP UPS1600 10A and 20A models
• Recommended for use with 6EP4134-3AB00-xxx and 6EP4136-3AB00-xxx UPS modules
• Supports Energy Storage Link communication protocol
• Integrates seamlessly with TIA Portal and STEP 7 programming environments

Installation & Mounting

Mounting Options:

• Standard DIN rail TH35×15 (EN 60715)
• Direct wall mounting
• Vertical mounting with terminals at bottom (recommended)

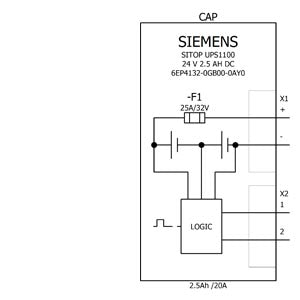

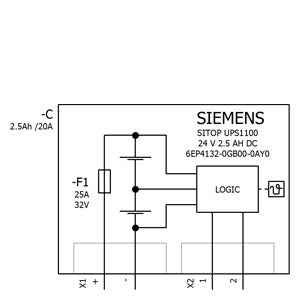

Connection Requirements:

• Power connection: X1-1, X1-2 terminals (0.2-6mm² wire capacity)
• Signal connection: X2-1, X2-2 terminals for Energy Storage Link
• Maximum cable length: 3m to UPS1600

Safety & Approvals

• CE marking compliant
• UL/cUL approved (UL 1778, CSA C22.2 No. 107.1)
• Explosion protection: II 3G Ex nA IIC T4 Gc
• RoHS compliant
• Marine approval (GL)

Applications

• Industrial automation systems
• Process control applications
• PLC backup power
• Critical control systems
• Manufacturing equipment
• Building automation
• Safety systems

Package Contents

• 1x SITOP UPS1100 Battery Module 6EP4132-0GB00-0AY0
• 1x 25A/32V plug-in fuse
• Installation and operating instructions
• CE Declaration of Conformity

Download existing graphical data for this product:

Product Datasheet

CAD Data and Drawings

Product Manual - SITOP UPS1600/UPS1100

Technical Documentation

Operating Instructions

SITOP Selection Tool

CAx Data Download

Additional Information

Article Number: 6EP4132-0GB00-0AY0
EAN: 4025515154280
UPC: 887621884703
Country of Origin: Austria
Net Weight: 3.7 kg
Packaging Dimensions: 31.00 × 14.00 × 10.00 cm

WEEE Compliance: Yes - Take-back obligation according to WEEE directive
Export Control: AL: N / ECCN: EAR99
