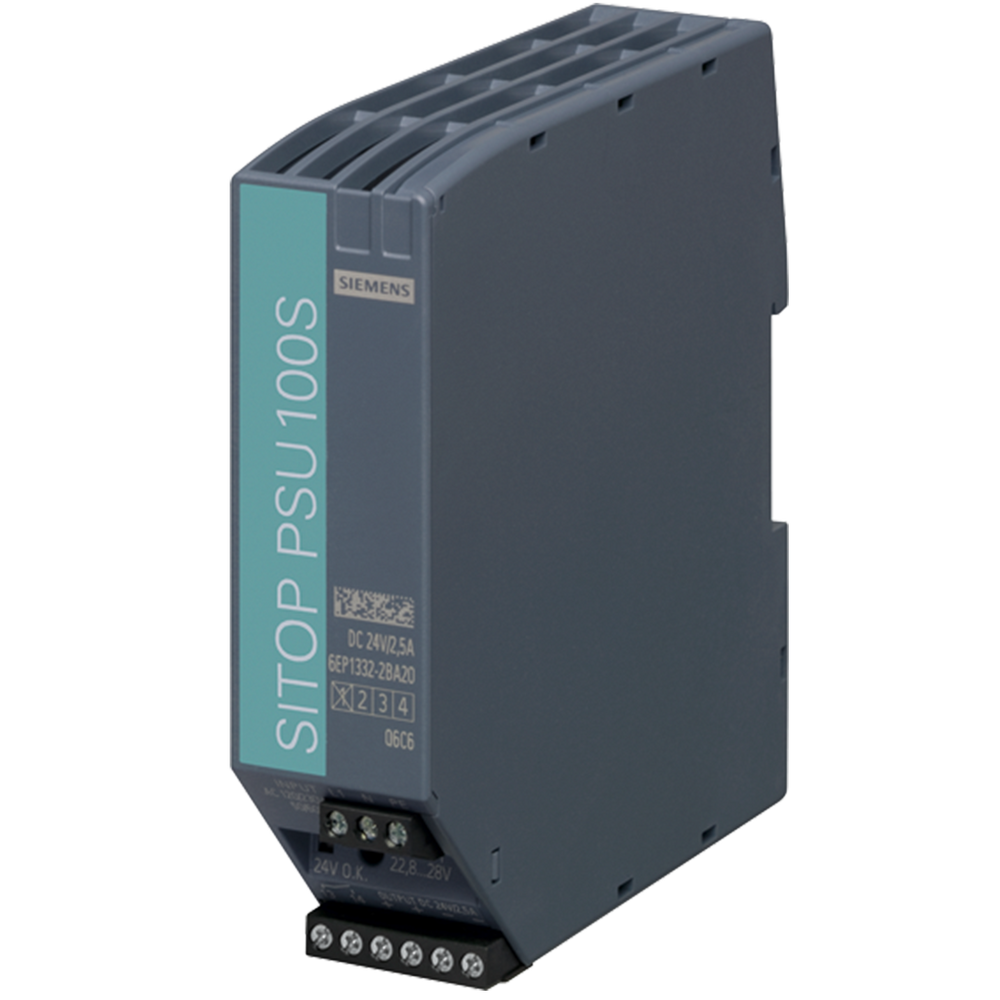

Siemens Stabilized power supply, 24V, 2.5A

Product Overview

SITOP PSU100S 24V/2.5A stabilized power supply unit designed for reliable AC to DC conversion with wide input voltage range compatibility (120/230V AC) and stable 24V DC output. This compact single-phase power supply delivers consistent 2.5A output current for industrial automation applications with advanced stabilization technology and robust construction for demanding industrial environments.

Key Features

• Wide input voltage range: 120/230V AC automatic switching
• Stable 24V DC output with 2.5A current rating (60W)
• High efficiency design (>88%) for reduced power consumption
• Compact DIN rail mounting for space-efficient installation
• Overload, short-circuit, and thermal protection
• LED status indicators for operational monitoring
• Maintenance-free operation with long service life
• Wide operating temperature range (-25°C to +70°C)

Technical Specifications

• Article Number: 6EP1332-2BA20
• Power Supply Type: SITOP PSU100S single-phase stabilized
• Input Voltage: 120/230V AC ±15% (50/60 Hz)
• Output Voltage: 24V DC ±1% (stabilized)
• Output Current: 2.5A continuous
• Output Power: 60W maximum
• Efficiency: >88% at full load
• Net Weight: 0.320 kg

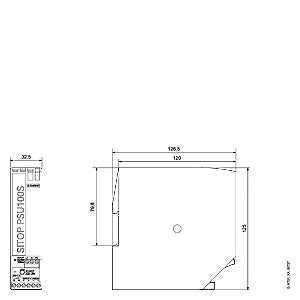

• Packaging Dimensions: 14.00 x 13.00 x 4.00 cm
• EAN: 4025515153474
• UPC: 887621038625
• Country of Origin: Austria

Performance Specifications

• Load Regulation: ±0.5% from no load to full load
• Line Regulation: ±0.2% for input voltage variations
• Ripple and Noise: <50mVpp
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% non-condensing
• Mounting: DIN rail (35mm) with screw terminals

Protection Features

• Overload Protection: Electronic current limiting with automatic restart
• Short-Circuit Protection: Automatic restart after fault clearance
• Thermal Protection: Automatic thermal shutdown
• Input Surge Protection: Built-in transient protection
• Overvoltage Protection: Internal protection circuits

Compliance & Certifications

• Export Control: AL: N / ECCN: N
• RoHS Compliance: Since 01.08.2006
• WEEE (2012/19/EU): Take-back obligation applicable
• CE Marking: Compliant with European directives
• UL Recognition: Listed for North American applications

Applications

• Industrial automation and control systems
• PLC and control panel power supply
• Field device and sensor power distribution
• Building automation systems
• Machine control and manufacturing equipment
• Process control instrumentation
• Safety and security systems
• Telecommunications equipment

Installation & Configuration

• Simple Installation: DIN rail mounting with secure retention
• Plug-and-Play: No configuration required for standard operation
• Flexible Wiring: Screw terminals accommodate 0.5-2.5mm² wire
• Safety Compliance: Meets industrial safety standards
• Status Monitoring: LED indicators for power and fault conditions

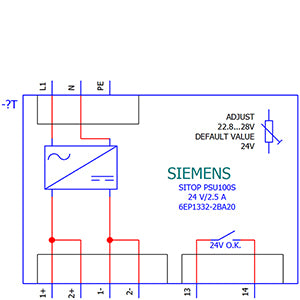

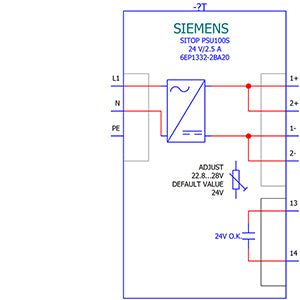

Download existing graphical data for this product:
