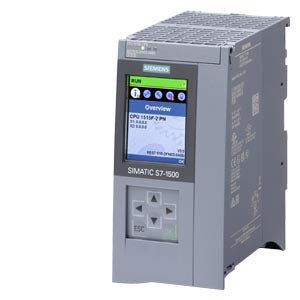

Siemens Siplus S7-1500 PLC Central processing unit w/ 2-port switch Part number 6AG1515-2FN03-2AB0

Product Overview

The Siemens 6AG1515-2FN03-2AB0 is a SIPLUS S7-1500 CPU 1515F-2 PN with conformal coating and extended temperature range (-40 °C to +60 °C). It is based on the 6ES7515-2FN03-0AB0 variant and delivers high-performance control for harsh industrial environments. It offers 1.5 MB of program memory and 4.5 MB of data memory, with integrated PROFINET IRT and PROFINET RT communication interfaces and ultra-fast 6 ns bit processing.

Key Features

• High-performance CPU in the SIPLUS S7-1500 family — model CPU 1515F-2 PN
• Conformal coating for robust operation in harsh or industrial environments (-40 °C to +60 °C)
• Processing speed: approximately 6 ns bit performance
• Program memory: 1.5 MB; Data memory: 4.5 MB
• First interface: PROFINET IRT with 2-port switch; second interface: PROFINET RT
• Designed for integration into SIMATIC automation systems with SIPLUS extreme specifications

Technical Specifications

• Product Series: SIPLUS S7-1500 CPU 1515F-2 PN
• Article Number: 6AG1515-2FN03-2AB0
• Program Memory: 1.5 MB
• Data Memory: 4.5 MB
• Bit Processing Time: ~6 ns
• Communication Interfaces: 1st: PROFINET IRT (2-port switch); 2nd: PROFINET RT
• Operating Temperature Range: -40 °C … +60 °C
• Conformal Coating: Yes (for harsh-environment application)
• Supply Voltage: 24 V DC
• Net Weight: Approx. 0.582 kg

Compliance & Certifications

• Manufactured by Siemens AG – Digital Industries, for industrial automation systems
• Conforms to Siemens SIPLUS specifications for extended-temperature, rugged CPU units
• Designed for use in demanding automation environments requiring high reliability and robustness

Applications

This CPU is ideal for use in industrial automation systems where high processing speed, large memory capacity and rugged environmental capability are required. Typical applications include machine tools, manufacturing lines, infrastructure systems and any installation subject to extreme temperatures, condensation or harsh environmental conditions.
