Siemens

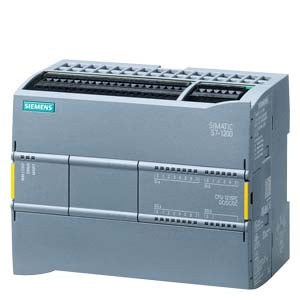

Siemens Simatic S7-1200F, Compact CPU 1215 FC, 150KB memory Part number 6ES7215-1AF40-0XB0
Back Order
💬
Ask an Expert - Technical Support Available
Product Description
SIMATIC S7-1200F, CPU 1215 FC, compact CPU, DC/DC/DC, 2 PROFINET ports, onboard I/O: 14 DI 24 V DC; 10 DO 24 V DC; 0.5 A; 2 AI 0-10 V DC, 2 AO 0-20 mA DC, power supply: DC 20.4-28.8 V DC, program/data memory 250 KB
Technical Specifications
| Additional program memory possible | No |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Depth | 75 mm |
| Explosion safety category for dust | None |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Front built-in possible | No |
| Height | 100 mm |
| IO link master | No |
| Memory size | 250 kByte |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Number of digital inputs | 14 |
| Number of digital outputs | 10 |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces other | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces wireless | 0 |
| Number of interfaces PROFINET | 1 |
| Number of relay outputs | 0 |
| Processing time (1K, binary operation) | 0.079999999 ms |
| Rack-assembly possible | No |
| Radio standard Bluetooth | No |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| Radio standard WLAN 802.11 | No |
| Rail mounting possible | Yes |
| Redundancy | No |
| Suitable for safety functions | Yes |
| Supply voltage DC | 28.8 V |
| Supply voltage DC | 20.4 V |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for ASI | Yes |
| Supporting protocol for CAN | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherCAT | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for KNX | No |
| Supporting protocol for LON | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for other bus systems | Yes |
| Supporting protocol for PROFIBUS | Yes |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | Yes |
| Supporting protocol for PROFIsafe | Yes |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for TCP/IP | Yes |
| System accessory | Yes |
| Type of memory | RAM |
| Voltage type (supply voltage) | DC |
| Wall mounting/direct mounting | Yes |
| Width | 130 mm |
| With display | No |
| With optical interface | No |
Technical Documentation & Downloads
Data Sheet
Complete technical specifications (PDF)
Brochure / Catalog
Product brochure and catalog information
Manual / Catalog Page
Installation and operation guide
Circuit Diagram
Wiring and connection guide
CE Declaration
Compliance and certification documents
Dimensional Drawing
Mechanical dimensions and mounting
3D Model / CAD
3D models and CAD files
Product Information
Manufacturer product page and specifications
Certificates & Approvals
Product approvals and certificates
EPD Document
Environmental Product Declaration
Videos & Media
Product Overview
Overview, features and application examples
Compatible Accessories & Components
Accessories
Siemens Simatic Memory card for S7-1x 00 CPU, 3, 3V flash...
6ES7954-8LP04-0AA0

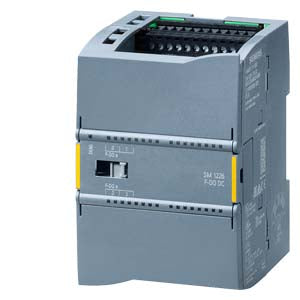

Siemens Simatic S7-1200, Digital output, 4 x 24VDC, 2A
6ES7226-6DA32-0XB0

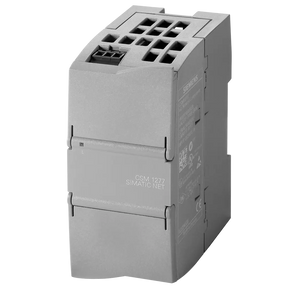

Siemens CSM1277 Compact switch module, 4 x RJ45 ports
6GK7277-1AA10-0AA0
Siemens Simatic S7 Memory card for S7-1x 00 CPU, 4 MB
6ES7954-8LC03-0AA0
Siemens Simatic S7 Memory card for S7-1X00 CPU/Sinamics
6ES7954-8LE03-0AA0
