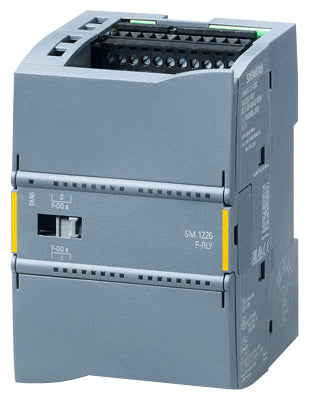

Siemens Simatic S7-1200 Relay output SM 1226, (W) 70mm, 5A Part number 6ES7226-6RA32-0XB0

Product Overview

The 6ES7226-6RA32-0XB0 is the “SM 1226 F-DQ 2× Relay Output” module — a digital output expansion module for the SIMATIC S7‑1200 PLC family. It provides two relay outputs suitable for signaling, switching loads, or safety-relevant control actions. The module supports fail-safe (PROFIsafe) configurations and meets safety standards up to Performance Level E (PL E) / SIL 3, making it suitable for safety-critical applications.

Key Features

• Relay-output module for SIMATIC S7-1200 (SM 1226)
• 2 relay outputs, each capable of switching up to 5 A
• Fail-safe capable (PROFIsafe) — suitable for safety circuits up to PL E / SIL 3
• Compact module width: 70 mm — saves space in control cabinets
• Output voltage range flexible: accepts 5 V … 30 V DC or 5 V … 250 V AC/DC depending on load
• LED indicators for output status diagnostics
• Mounting compatible with standard S7-1200 racks / backplane bus

Technical Specifications

• Article Number: 6ES7226-6RA32-0XB0
• Module Type: Digital Output – Relay (SM 1226)
• Number of Outputs: 2 relay outputs
• Output Current (max per channel): 5 A
• Total Output Load Max: 10 A (sum of both outputs)
• Supply Voltage (backplane bus): 20.4 … 28.8 V DC
• Power Loss (typical): ~10 W
• Suitable Output Voltage Range: DC 5 … 30 V or AC/DC 5 … 250 V (depending on load and configuration)
• Indicator LEDs: Output status LEDs for diagnostics
• Width (module): 70 mm
• Mounting: Compatible with S7-1200 mounting rail / backplane bus
• Safety Rating: Up to PL E (ISO 13849-1) / SIL 3 (IEC 61508) when used in fail-safe application
• Protection Class: IP20 (standard internal mounting)
• Suitable for Safety Applications: Yes (fail-safe relay outputs)

Applications

This relay output module is ideal for use in automation and safety systems based on SIMATIC S7-1200 where load switching, alarm signaling, actuator control or safety-critical output functions are required. Typical use cases include safety shutdowns, valve control, emergency stop circuits, warning lights, pump or motor control — especially in environments that require compliance with functional safety standards up to SIL 3 / PL E.
