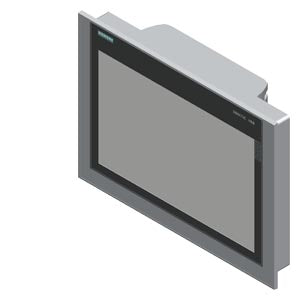

Siemens Simatic HMI TP1200 Comfort panel, touch, 12" TFT

Product Overview

Mid-range SIMATIC HMI Comfort Panel designed for touch operation applications. This industrial-grade human-machine interface features a 12" widescreen TFT display with enhanced memory capacity and comprehensive connectivity options, delivering reliable performance for automation monitoring and control applications requiring a balance of screen size and functionality.

Key Features

• Display Technology: 12" widescreen TFT display with 16 million colors
• Operation Method: Touch operation for intuitive user interaction
• Connectivity: PROFINET interface and MPI/PROFIBUS DP interface
• Memory: 12 MB configuration memory for application storage
• Operating System: Windows CE 6.0 for stable industrial operation
• Configuration: Compatible with WinCC Comfort V11 software
• Panel Type: SIMATIC HMI TP1200 Comfort Panel

Technical Specifications

• Display Size: 12" widescreen format
• Color Depth: 16 million colors
• Memory Capacity: 12 MB configuration memory
• Communication Interfaces: PROFINET, MPI/PROFIBUS DP
• Net Weight: 3.460 kg
• Packaging Dimensions: 36.20 x 50.90 x 12.60 cm
• Quantity Unit: 1 Piece
• EAN: 4025515079002
• UPC: 040892686050
• Country of Origin: Germany

Compliance

• RoHS Compliance: Compliant since January 31, 2011
• Export Control: AL: N / ECCN: 9N9999
• WEEE Take-Back Obligation: Yes

Environmental & Safety Information

This product meets industrial environmental standards and contains several substances listed under REACH Article 33 regulations in concentrations higher than 0.1% by weight, including Lead, Silicic acid lead salt, Bisphenol A (BPA), and Lead monoxide. When used as intended, including proper disposal, these substances do not pose risk to users.

Configuration & Software

Designed for seamless integration with Siemens automation systems, this HMI panel is configurable using WinCC Comfort V11 software, providing comprehensive tools for creating intuitive operator interfaces and system monitoring solutions. The 12" display size offers an optimal balance between screen real estate and installation space requirements.

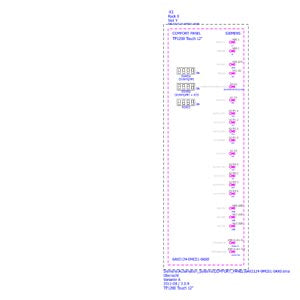

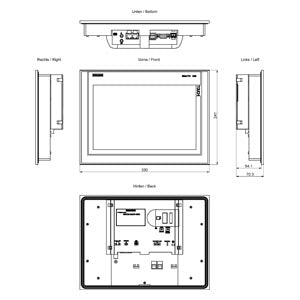

Download existing graphical data for this product:

For technical documentation and detailed specifications, please refer to the official Siemens support resources:

• Technical Data Sheet
• Product Information Page
