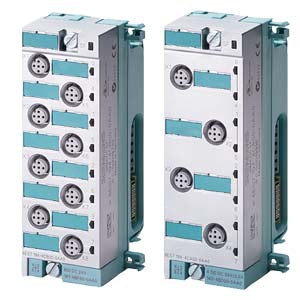

Siemens Simatic DP Electronic module, 4DO, 24VDC, 2A

Product Overview

SIMATIC DP electronic module for ET 200 PRO system featuring 4 digital outputs (DO) with 24V DC operation at 2.0A current rating. This robust digital expansion module includes integrated module diagnostics and comes with a bus module included. The connection module IO (6ES7194-4..00-0AA0) must be ordered separately to complete the installation. Designed for demanding industrial automation applications requiring high-current digital output control in IP65/67 distributed I/O systems.

Key Features

• 4 digital outputs (DO) with high current capacity
• 24V DC operation with 2.0A current rating per output
• Integrated module diagnostics for comprehensive system monitoring
• Bus module included for seamless system integration
• Hot-swappable capability for maintenance without system shutdown
• Robust IP65/67 protection rating for harsh environments
• LED status indicators for operational feedback and troubleshooting

Technical Specifications

• Article Number: 6ES7142-4BD00-0AA0
• Output Type: 4 Digital Outputs (DO)
• Voltage: 24V DC
• Current Rating: 2.0A per output
• Net Weight: 0.170 kg
• Packaging Dimensions: 7.30 x 14.10 x 6.80 cm
• Quantity Unit: 1 Piece
• EAN: 4025515072195
• UPC: 662643232912
• Country of Origin: Germany

System Requirements

• Connection Module: IO Connection Module 6ES7194-4..00-0AA0 (must be ordered separately)
• System Compatibility: ET 200 PRO distributed I/O system
• Communication: PROFIBUS DP protocol
• Protection Rating: IP65/67 for outdoor and harsh environment applications

Compliance & Certifications

• Export Control: AL: N / ECCN: N
• RoHS Compliance: Since 31.03.2008
• WEEE (2012/19/EU): Take-back obligation applicable
• Product Class: A - Standard product which is a stock item, returnable within guidelines

Applications

• Heavy-duty motor control and actuation
• High-current valve and solenoid control
• Industrial heating element control
• Heavy machinery automation
• Process control systems requiring high current outputs
• Conveyor belt drive systems
• Pump and compressor control

Advanced Features

• Hot Swapping: Allows module replacement without system shutdown
• Module Diagnostics: Real-time monitoring of module health and performance
• High Current Capacity: 2.0A per output for demanding applications
• Robust Construction: IP65/67 rating for harsh industrial environments
• Modular Design: Seamless integration with ET 200 PRO system architecture

Installation Notes

• Requires separate ordering of Connection Module IO (6ES7194-4..00-0AA0)
• Module diagnostics provide comprehensive status monitoring
• Hot-swappable design maintains system continuity during maintenance
• Compatible with standard ET 200 PRO mounting rails
• Suitable for direct machine installation without control cabinet
