Siemens Signal cable, pre-assembled, drive-cliq, RJ45, 24V

Product Overview

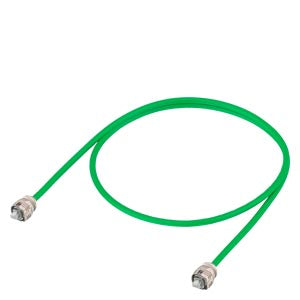

Signal cable pre-assembled type: 6FX8002-2DC20 DRIVE-CLiQ with 24 V plug RJ45 IP67 on both sides released only up to 75 m length Dmax=7.1 mm length (m)= 1. This high-quality pre-assembled signal cable provides reliable DRIVE-CLiQ communication between SINAMICS drive controllers and motor components with IP67 protection rating for demanding industrial automation applications.

Key Features

Cable Construction:

• Pre-assembled MOTION-CONNECT 800 PLUS signal cable
• 7.1 mm outside diameter with 1 meter length
• PUR (Polyurethane) outer sheath for industrial durability
• Green cable color for signal cable identification
• Shielded cable construction for EMC protection

Connector Design:

• RJ45 connectors with IP67 protection rating on both sides
• 24 V power contacts integrated for device power supply
• Pre-assembled connectors for plug-and-play installation
• Straight RJ45 connector to straight RJ45 connector configuration
• DRIVE-CLiQ communication interface compatibility

Performance Specifications:

• Voltage Rating: 30 VAC nominal, 24 VDC power supply
• Temperature Range: -4°C to +80°C (-4°F to +176°F)
• Protection Rating: IP67 on both connector ends
• Cable Length: 1 meter (maximum system length up to 75 m)
• Conductor Configuration: 2x2x0.20 mm² + 1x2x0.38 mm² (power contacts)

Technical Specifications

Physical Characteristics:

• Cable Length: 1 meter
• Net Weight: 0.243 lb (0.110 kg)
• Outside Diameter: 7.1 mm
• Cable Color: Green outer sheath
• Connector Type: RJ45 IP67 to RJ45 IP67

Electrical Properties:

• Voltage Rating: 30 VAC nominal, 24 VDC power supply
• Conductor Material: Bare copper conductors
• Insulation Type: CFC (Chlorine-free compound)
• Shielding: Shielded cable construction
• Temperature Rating: -4°C to +80°C continuous operation

Standards and Compliance:

• Protection Rating: IP67 on both connector ends
• RoHS Compliance: Yes, since 07/01/2006
• WEEE Take-Back Obligation: Yes, covered under WEEE (2012/19/EU)
• Export Control: ECCN: N / AL: N
• Country of Origin: Slovakia

Product Information:

• UPC: 662643345100
• Packaging: 1 piece per package
• Product Class: Custom manufactured product (non-returnable)

Applications

The DRIVE-CLiQ signal cable is designed for communication between SINAMICS S120 drive controllers and SINAMICS motor modules in industrial automation applications requiring reliable digital communication with integrated 24V power supply. Ideal for servo drive systems, motion control applications, distributed drive architectures, motor feedback systems, and robotic applications requiring high-speed digital communication with IP67 environmental protection.

Operation

The DRIVE-CLiQ cable provides high-speed digital communication between SINAMICS components using advanced serial communication protocol. The integrated 24V power contacts supply power to connected devices while maintaining data transmission integrity. The IP67 sealed connectors protect against dust and water ingress in harsh industrial environments. The cable supports daisy-chain and star network topologies for flexible system architecture. EMC-optimized shielding ensures interference-free operation in electrically noisy environments. The pre-assembled construction eliminates field wiring errors and reduces installation time.

Compatibility

System Integration:

• SINAMICS S120: Drive controller communication
• SINAMICS Motor Modules: Direct motor connection
• MOTION-CONNECT 800 PLUS: System compatibility
• DRIVE-CLiQ Network: Digital communication backbone

Communication Features:

• Protocol: DRIVE-CLiQ digital communication
• Power Supply: Integrated 24V power contacts
• Data Transmission: High-speed digital signal transmission
• Network Topology: Daisy-chain and star configurations supported

REACH Compliance

Currently, there is no information on SVHC (Substances of Very High Concern) from the supply chain. Products are regularly compared with the REACH candidate list, and information will be updated as new findings become available.
