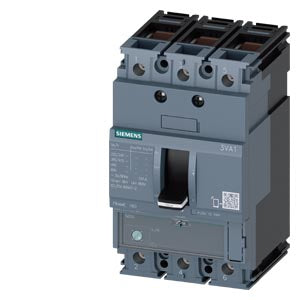

Siemens Sentron Molded case circuit breakers, 3-pole, fixed mount, 125A, 36kA Part number 3VA1112-4EE36-0AA0

Product Overview

The Siemens 3VA1112-4EE36-0AA0 is a molded-case circuit breaker from the Sentron 3VA1 series designed for reliable line protection in low-voltage distribution systems. With a rated current of 125 A and a high-performance breaking capacity, it ensures dependable protection for industrial and commercial electrical installations.

Key Features

• 3-pole molded-case circuit breaker
• Rated current: 125 A
• High breaking capacity (class S)
• Thermal-magnetic trip unit for overload and short-circuit protection
• Compact frame size for space-efficient installations
• Front box terminals for straightforward wiring
• Suitable for AC and DC applications within the 3VA1 performance class

Technical Specifications

• Product Series: Sentron 3VA1
• Article Number: 3VA1112-4EE36-0AA0
• Number of Poles: 3
• Rated Current (In): 125 A
• Rated Operational Voltage: up to 690 V AC
• Rated Insulation Voltage: 800 V
• Breaking Capacity: Class S (application-dependent values)
• Trip Unit: Thermal-magnetic
• Mounting: Fixed-mounted with front terminals

Compliance & Certifications

• Manufactured to Siemens Sentron low-voltage switchgear standards
• Conforms to international MCCB performance requirements
• RoHS compliant

Applications

Suitable for feeder and distribution circuits in industrial plants, commercial buildings and infrastructure systems. Ideal where compact installation, 125 A line protection and high breaking capacity are required for safe and reliable electrical distribution.
