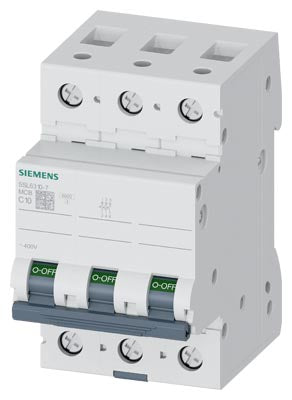

Siemens SENTRON 5SL6 MCB, Curve C, 3-pole, 6kA breaking capacity, 10A Part number 5SL6310-7

Product Overview

The Siemens 5SL6310-7 is a SENTRON 5SL6 series miniature circuit breaker (MCB), three-pole design rated at 10 A, tripping characteristic “C”. It provides reliable protection for small industrial or commercial three-phase circuits with a breaking capacity of 6 kA at 400 V AC.

Key Features

• Three-pole miniature circuit breaker from the Siemens SENTRON 5SL6 range
• Rated current: 10 A with tripping characteristic “C” (suitable for general loads with moderate inrush)
• Breaking capacity (Icu): 6 kA at 400 V AC
• Compact DIN-rail mountable design (3 width modules)
• Halogen-free, silicon-free construction for safer environments
• Sealable front for enhanced security in distribution boards

Technical Specifications

• Product Series: SENTRON 5SL6
• Article Number: 5SL6310-7
• Number of Poles: 3 P
• Rated Current (In): 10 A
• Tripping Characteristic: C
• Breaking Capacity (Icu): 6 kA at 400 V AC
• Operating Voltage (Ue): up to 400 V AC (multi-phase)
• Protection Class (Front): IP20 (with connected conductors)
• Width / Modular Units: 3 modules
• Ambient Operating Temperature: –25 °C to +45 °C (standard)

Compliance & Certifications

• Manufactured by Siemens under the SENTRON low-voltage switchgear standard
• Complies with EN 60898-1 and IEC 60947-2 miniature circuit-breaker standards

Applications

Ideal for protection of small three‐phase branch circuits in industrial, commercial or residential settings. Commonly used in power distribution boards, machine control panels and lighting or socket circuits where compact, reliable overcurrent protection is required.
