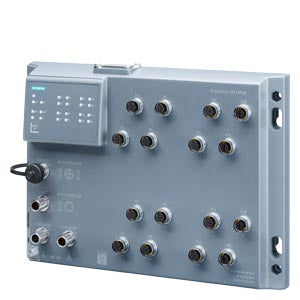

Siemens Scalance XP216 Managed IE switch, 12 ports Part number 6GK5216-0HA00-2AS6

Product Overview

The Siemens SCALANCE XP216 managed Industrial Ethernet switch with 12 × 10/100 Mbit/s M12 ports and 4 × 10/100/1000 Mbit/s M12 ports, IP65/67 protection class, article number 6GK5216-0HA00-2AS6, is a rugged managed Ethernet switch designed for industrial automation networks. It provides reliable PROFINET-conformant communication together with advanced switching, diagnostics, and redundancy functions, making it suitable for harsh industrial environments where high network availability and robustness are required.

Key Features

• Managed Industrial Ethernet switch for industrial networks
• 12 × 10/100 Mbit/s M12 ports and 4 × 10/100/1000 Mbit/s M12 ports
• Rugged IP65/67 housing for harsh environments
• Supports PROFINET communication
• Redundancy and ring topology support
• Integrated diagnostics and error signalling
• Support for VLAN and quality of service
• Removable configuration storage via C-PLUG

Technical Specifications

• Article Number: 6GK5216-0HA00-2AS6
• Product Family: SCALANCE XP216
• Device Type: Managed Industrial Ethernet switch
• Ethernet Ports: 12 × 10/100 Mbit/s, 4 × 10/100/1000 Mbit/s
• Connector Type: M12 industrial connectors
• Supply Voltage: 24 V DC
• Protection Class: IP65/67
• Operating Temperature: −40 °C to +70 °C
• Mounting: Wall or machine mounting
• Network Functions: Redundancy, VLAN, QoS, diagnostics

Compliance & Standards

• Designed for PROFINET-based industrial Ethernet networks
• Suitable for harsh industrial environments with IP65/67 protection
• Meets Siemens requirements for industrial network devices
• Supports industrial Ethernet and automation standards

Applications

The Siemens 6GK5216-0HA00-2AS6 SCALANCE XP216 Ethernet switch is used to build robust and managed industrial Ethernet networks in factory automation, process automation, and machine installations. Its rugged M12 connectors and IP65/67 enclosure allow it to be installed close to machines or in exposed areas, while providing reliable data communication, diagnostics, and redundancy for PROFINET and Ethernet-based control systems.
