Product Overview

Power over Ethernet Industrial Switch with Integrated Power Supply

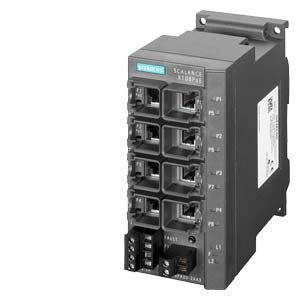

The SCALANCE X108PoE is an unmanaged Industrial Ethernet switch featuring integrated Power over Ethernet (PoE) functionality for machine-level applications requiring both data connectivity and power distribution. This compact 8-port switch combines 2 PoE-enabled ports with 6 standard Ethernet ports, ideal for powering WLAN access points, IP cameras, and sensors directly through the network cable.

Important Note: This product has been discontinued as of October 1, 2023, and is available only as a spare part. Successor model 6GK5108-0PA00-2AC2 is available for new applications.

Key Features

• Power over Ethernet Capability: 2 x 10/100 Mbps RJ45 ports with IEEE 802.3af PoE functionality, delivering up to 15.4W per port. Standard network devices without PoE can also be connected to these ports.
• Comprehensive Connectivity: 6 additional 10/100 Mbps RJ45 ports for standard network connections, offering total 8-port flexibility in compact industrial environments.
• Advanced Diagnostics: Integrated LED diagnostics provide real-time visual status monitoring for power, link status, and data communication. Error-signaling contact with set pushbutton enables remote fault monitoring.
• Redundant Power Supply: Built-in redundant 24V DC power supply with 4-pole terminal block connection ensures maximum uptime for critical industrial applications.
• Rugged Industrial Design: Compact metal enclosure in SIMATIC S7-300 format with IP30 protection rating, designed for space-saving control cabinet installation.

Technical Specifications

Network Performance:

• 2 x 10/100 Mbps RJ45 PoE ports
• 6 x 10/100 Mbps RJ45 standard ports
• Auto-negotiation and Auto-MDI/MDIX
• Store-and-forward switching architecture

Power over Ethernet:

• IEEE 802.3af compliant
• 15.4W maximum per PoE port
• 12.95W available with 100m cable
• Automatic PoE detection and protection

Physical Specifications:

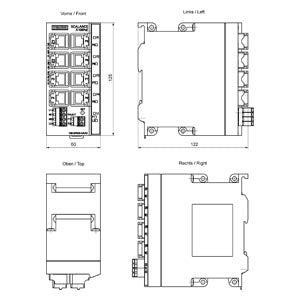

• Dimensions: 60mm (W) × 125mm (H) × 124mm (D)
• Weight: 1.017 kg
• Mounting: DIN rail or wall mounting
• Enclosure: IP30 metal housing, SIMATIC S7-300 format

Environmental Conditions:

• Operating Temperature: -20°C to +60°C (extended -40°C to +70°C)
• Storage Temperature: -40°C to +80°C
• Relative Humidity: 95% at 25°C (non-condensing)

Power Supply:

• Supply Voltage: 24V DC
• Connection: 4-pole terminal block
• Redundant power capability
• Isolation between power inputs

Applications

Perfect for industrial applications requiring data and power distribution:

• WLAN access point power supply (e.g., SCALANCE W series)
• IP camera and surveillance systems
• Industrial sensor networks
• Machine-level automation systems
• Process control equipment
• Building automation systems

Certifications & Compliance

Industrial Approvals:

• Railway approval EN 50155 for transportation applications
• ATEX Zone 2 and IECEx certification for hazardous areas
• Marine certifications for shipbuilding applications
• RoHS compliant since October 30, 2008

Regulatory Compliance:

• Export Control: ECCN: 9N9999 / AL: N
• WEEE Compliance: Subject to take-back obligation under 2012/19/EU directive

REACH Regulation: Contains lead, lead monoxide, silicic acid lead salt, and 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol in concentrations higher than 0.1% w/w. These substances do not pose risks when used as intended.

Package Information

• EAN: 4019169189361
• UPC: 662643354126
• Net Weight: 1.017 kg
• Package Dimensions: 80.0 × 125.0 × 147.0 mm
• Country of Origin: Germany
