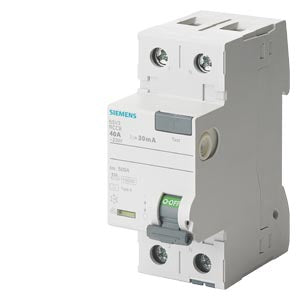

Siemens Residual current operated circuit breaker, 2-pole, 63A

Product Overview

The Siemens 5SV3316-6 is a high-performance residual current circuit breaker designed for comprehensive protection against electric shock in commercial and industrial single-phase applications. This 2-pole RCCB features a 63 A current rating with 230 V operational voltage, Type A characteristic, and 30 mA residual current sensitivity, making it ideal for protecting personnel and property from dangerous earth leakage currents in high-current single-phase electrical installations with electronic components.

Key Features

• 30 mA High Sensitivity: Provides rapid disconnection for personal protection against dangerous residual currents
• 2-Pole Configuration: Comprehensive protection for single-phase systems with line and neutral monitoring
• Type A Characteristic: Enhanced protection against AC and pulsating DC residual currents from electronic equipment
• 63 A High Current Rating: Suitable for heavy-duty single-phase equipment and high-load commercial applications

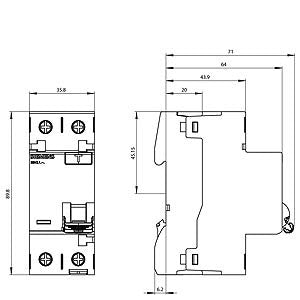

• Compact Design: Space-efficient construction suitable for standard DIN rail mounting (D=70 mm)
• German Engineering: Manufactured in Germany ensuring premium quality and reliability

Technical Specifications

• Current Rating: 63 A
• Voltage Rating: 230 V AC
• Residual Current Sensitivity: 30 mA
• Number of Poles: 2
• Type: A (AC + pulsating DC)
• Net Weight: 0.211 kg
• Packaging Dimensions: 97.00 x 42.00 x 85.00 mm
• Country of Origin: Germany
• EAN: 4001869429656

Applications

This high-current residual current circuit breaker is particularly suitable for:

• Heavy-duty single-phase motor applications
• High-current commercial electrical installations
• Industrial machinery with electronic components
• Variable frequency drive installations
• Electronic equipment with switch-mode power supplies
• Large heating and cooling systems
• Commercial kitchen equipment protection
• Industrial automation systems
• High-load residential installations
• Electronic ballast lighting systems

Compliance & Certifications

• RoHS Compliance: Compliant since June 1, 2006
• WEEE Directive: Subject to take-back obligations under directive 2012/19/EU
• REACH Regulation: Contains lead in concentrations higher than 0.1% w/w as per Article 33 requirements
• Export Control: AL: N / ECCN: N
• Product Class: A - Standard product with standard return guidelines

Product Classification

• eClass: 27-14-22-01 (versions 6-14)
• ETIM: EC000003 (versions 7-9)
• UNSPSC: 39-12-16-01
• Product Group: 5511

Download existing graphical data for this product:

• Product Datasheet
• Installation Manual
• SENTRON Product Catalog
• Technical Documentation
