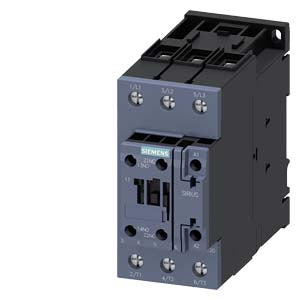

Siemens Power contactor, 3-pole, 1NO + 1NC, size S2, 22kW Siemens
Siemens Power contactor, 3-pole, 1NO + 1NC, size S2, 22kW Siemens

Siemens Power contactor, 3-pole, 1NO + 1NC, size S2, 22kW

nan
Vendor: Siemens
SKU: 3RT2036-1AB00
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x
nan
Specifications
Specifications
x

Product-specific information

Product type designation3RT2
Size of contactorS2
Number of poles for main current circuit3
Number of NO contacts for main contacts3
Number of NC contacts for main contacts0
Rated operational current50 A
Rated operational voltage690 V
Rated control supply voltageAC 24 V at 50/60 Hz
Auxiliary contact composition1 NO + 1 NC
Product functionMirror contact

General technical data

Frame sizeS2
Product extension optionalYes
Insulation voltage with degree of pollution 3 rated value690 V
Surge voltage resistance rated value6 kV
Maximum permissible voltage for safe isolation between coil and main contacts acc. to EN 60947-1400 V
Protection class IP on the frontIP20
Touch protection on the frontfinger-safe
Shock resistance at rectangular impulse11g / 15.1 ms, 7g / 5 ms, 4g / 10 ms
Shock resistance with sine pulse17g / 5 ms, 10g / 10 ms
Mechanical service life (switching cycles)10 000 000
Electrical endurance (switching cycles)100 000
Reference code acc. to DIN EN 81346-2Q
Continuous current of the C characteristic MCB63 A
Continuous current of the quick DIAZED fuse link80 A
Continuous current of the DIAZED fuse link gG63 A
Operating current at 1 current path at DC-1 at 24 V rated value55 A
Operating current at 2 current paths in series at DC-1 at 24 V rated value55 A
Operating current at 3 current paths in series at DC-1 at 24 V rated value55 A
Operating current at 1 current path at DC-3 at DC-5 at 24 V rated value35 A
Operating current at 2 current paths in series at DC-3 at DC-5 at 24 V rated value55 A
Operating current at 3 current paths in series at DC-3 at DC-5 at 24 V rated value55 A
Operating current at DC-1 maximum250 A
Operating current at AC-1 at 400 V rated value60 A
Operating current at AC-1 up to 690 V rated value60 A
Operating current at AC-2 at 400 V rated value50 A
Operating current at AC-3 at 400 V rated value50 A
Operating power at AC-3 at 400 V rated value22 kW
Operating power at AC-3 at 690 V rated value37 kW
Operating frequency at AC-1 maximum1 000 1/h

Control circuit/ Control

Type of voltage of the control supply voltageAC
Control supply voltage at AC at 50 Hz rated value24 V
Control supply voltage at AC at 60 Hz rated value24 V
Operating range factor control supply voltage rated value of magnet coil at AC at 50 Hz0.8 ... 1.1
Operating range factor control supply voltage rated value of magnet coil at AC at 60 Hz0.85 ... 1.1
Apparent pick-up power of magnet coil at AC190 V·A
Inductive power factor with closing power of the coil0.72
Apparent holding power of magnet coil at AC16 V·A
Inductive power factor with the holding power of the coil0.37
Closing delay10 ... 80 ms
Opening delay10 ... 18 ms
Arcing time10 ... 20 ms

Auxiliary circuit

Number of NC contacts for auxiliary contacts1
Number of NO contacts for auxiliary contacts1
Number of CO contacts for auxiliary contacts0
Operating current of auxiliary contacts at AC-12 maximum10 A
Operating current of auxiliary contacts at AC-15 at 230 V6 A
Operating current of auxiliary contacts at AC-15 at 400 V3 A
Operating current of auxiliary contacts at DC-13 at 24 V6 A
Operating current of auxiliary contacts at DC-13 at 60 V2 A
Operating current of auxiliary contacts at DC-13 at 110 V1 A
Operating current of auxiliary contacts at DC-13 at 220 V0.3 A
Contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)

Short-circuit protection

Design of the fuse link for short-circuit protection of the main circuit requiredgG: 63 A (690 V, 100 kA), aM: 50 A (690 V, 100 kA), BS88: 63 A (415 V, 50 kA)
Design of the short-circuit trips of the main circuitCircuit breaker 3RV2 or 3VA1
Design of the short-circuit trips auxiliary switch requiredgG: 10 A (500 V, 1 kA)

Installation/ mounting/ dimensions

Mounting positionwith vertical mounting surface +/-180° rotatable, with vertical mounting surface +/- 22.5° tiltable to the front and back
Mounting typescrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715
Height114 mm
Width55 mm
Depth130 mm
Required spacing with side-by-side mounting at the side10 mm
Required spacing for grounded parts at the side10 mm
Required spacing to non-grounded parts at the side10 mm
Screw and snap-on mountingYes
Mounting typevertical

Connections/ Terminals

Type of electrical connection for main current circuitscrew-type terminals
Type of connectable conductor cross-sections for main contacts solid2x (1 ... 35 mm²), 1x (1 ... 50 mm²)
Type of connectable conductor cross-sections for main contacts stranded2x (1 ... 35 mm²), 1x (1 ... 50 mm²)
Type of connectable conductor cross-sections for main contacts finely stranded with core end processing2x (1 ... 25 mm²), 1x (1 ... 35 mm²)
Type of connectable conductor cross-sections at AWG cables for main contacts2x (18 ... 2), 1x (18 ... 1)
Type of electrical connection for auxiliary and control circuitscrew-type terminals
Type of connectable conductor cross-sections for auxiliary contacts solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Type of connectable conductor cross-sections for auxiliary contacts stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Type of connectable conductor cross-sections for auxiliary contacts finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Type of connectable conductor cross-sections at AWG cables for auxiliary contacts2x (20 ... 16), 2x (18 ... 14)
UL/CSA ratingsUL 60947-4-1, CSA C22.2 No. 60947-4-1, UL 508, CSA C22.2 No. 14

Certificates/ approvals

General Product ApprovalEMC
Declaration of ConformityTest Certificates
MiscellaneousType Test Certificates/Test Report
Marine / Shippingother
ConfirmationPFIF

Further information

Information- and Downloadcenter (Catalogs, Brochures,…)https://www.siemens.com/ic10
Industry Mall (Online ordering system)https://mall.industry.siemens.com/mall/en/en/Catalog/product?mlfb=3RT2036-1AB00
Cax online generatorhttp://support.automation.siemens.com/WW/CAXorder/default.aspx?lang=en&mlfb=3RT2036-1AB00
Service&Support (Manuals, Certificates, Characteristics, FAQs,..)https://support.industry.siemens.com/cs/ww/en/ps/3RT2036-1AB00
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, …)http://www.automation.siemens.com/bilddb/cax_de.aspx?mlfb=3RT2036-1AB00&lang=en
Characteristic: Tripping characteristics, I²t, Let-through currenthttps://support.industry.siemens.com/cs/ww/en/ps/3RT2036-1AB00/char
Characteristic: Installation altitudehttp://www.automation.siemens.com/bilddb/index.aspx?view=Search&mlfb=3RT2036-1AB00&objecttype=14&gridview=view1
Documents
Documents
x
Download Datasheet
