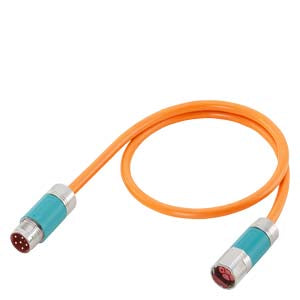

Siemens Power cable extension, 4 x 1.5 + (2x1.5)C C, speed-connect

SKU / Article No. Ford-6FX8002-5DN05-1AD0
Product Type Cable & Cable Management
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

This MOTION CONNECT 800PLUS cable is designed for high-performance motion control applications, offering a robust 4 kV test voltage and a 600 V/1000 V rated voltage. It features a PUR sheath, high torsional resistance of 30°/m, and a maximum bending radius of 90 mm, suitable for dynamic industrial environments.

Technical Specifications

Compliance / CertificationsCSA-C22.2-N.210.2-M90 / UL 758
Country of OriginGermany
FlammabilityEN 60332-1-1 to 1-3
Temperature: Operating-20°C to 60°C
Material: Insulation / Inner sheathCFC / Halogen / Silicone-free
Material: Jacket / Outer SheathPUR DESINA
Bending RadiusFixed - 48 / Flexible - 90
Part Length (mm)3 000mm
Weight 690g
Connection TypeConector SPEED-CONNECT
Voltage Range/Rating600 V / 1000 V
