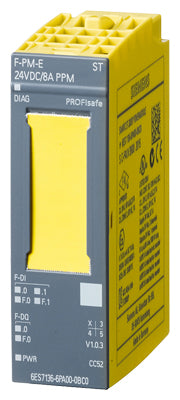

Siemens Powder module FPM- E PPM Profisafe, for ET 200SP, 24VDC Part number 6ES7136-6PA00-0BC0

Product Overview

The Siemens 6ES7136-6PA00-0BC0 is the **F-PM-E 24 V DC / 8 A PPM ST** fail-safe power module for the SIMATIC ET 200SP distributed I/O system. It supplies a protected 24 V DC potential group with up to 8 A output and provides **safe shutdown capability** for downstream digital outputs and fail-safe I/O modules. Designed for functional-safety applications, it enables secure power interruption for SIL/PL-rated systems and integrates into ET 200SP base units of type BU-C0.

Key Features

• Fail-safe power module for SIMATIC ET 200SP
• Provides 24 V DC / up to 8 A to a potential group
• Supports safe shutdown of DQ & F-DQ modules
• Suitable for safety applications (PL d/SIL 2; up to PL e/SIL 3 depending on configuration)
• Electronic protection: short-circuit, overload, reverse polarity
• Compact, cabinet-friendly form factor
• DIN-rail installation via ET 200SP base units (BU-type C0)
• Provides I&M0–I&M3 identification & maintenance data

Technical Specifications

• Article Number: 6ES7136-6PA00-0BC0
• Designation: F-PM-E 24 V DC / 8 A PPM ST
• System: SIMATIC ET 200SP
• Supply Voltage: 24 V DC
  • Permitted range: 20.4 – 28.8 V DC
• Output Current: Up to 8 A
• Supports Safe Shutdown:
  • Safe DQ outputs
  • Fail-safe DQ modules (F-DQ)
  • Safe interruption of the 24 V potential group
• Compatible Base Units: BU-type C0
• Protection Features: Electronic overload, short-circuit, reverse-polarity protection
• I&M Data: I&M0 to I&M3 supported
• Physical Dimensions:
  • Approx. width: 20 mm
  • Standard ET 200SP height and depth (~73 × 58 mm)
• Weight: approx. 0.08 kg
• Installation: DIN-rail via ET 200SP mounting system
• Protection Class: IP20

Compliance & Standards

• Supports CANopen standards CiA 301 / CiA 302 for safe device operation
• Compliant with PROFIsafe requirements when used with compatible F-modules
• Suitable for use inside industrial electrical control cabinets
• Meets standard industrial electrical protection and safety requirements

Applications

The 6ES7136-6PA00-0BC0 is ideal for safety-related automation tasks where safe shutdown of I/O modules is required. Typical uses include machinery safety systems, emergency stop circuits, production line interlocks, distributed I/O islands, and ET 200SP safety architectures. This module ensures that downstream actuators or field devices can be shut down safely and reliably under fault or emergency conditions.
