Siemens Neozed fuse link with silver coated contact caps, 63A

Product Overview

SKU 5SE2363 - NEOZED fuse-link, D02, 63 A, gG, Un AC: 400 V, Un DC: 250 V, with silver-coated contact-caps. This Siemens NEOZED fuse link provides reliable overcurrent protection for electrical installations and delivers effective protection against overload and short circuits.

Key Features & Specifications

• Electrical Ratings: 63A rated current, 400V AC / 250V DC rated voltage
• Size: D02 (NEOZED size classification)
• Operating Class: gG (general-purpose circuit protection)
• Breaking Capacity: 50kA at 400V AC, 8kA at 250V DC
• Contact Caps: Silver-coated for enhanced conductivity and corrosion resistance
• Material: Ceramic construction for high thermal resistance
• Protection Rating: IP20 (touch-proof and dust resistant)

Performance Characteristics

• Temperature Range: -5°C to +40°C operating temperature
• High Breaking Capacity: Withstands powerful in-rush currents
• Visual Indication: Color indicator shows fuse status at a glance when blown
• Low Resistance: Silver-plated contacts minimize circuit resistance and boost current flow
• Reliable Protection: Sacrificial element protects downstream equipment from electrical faults

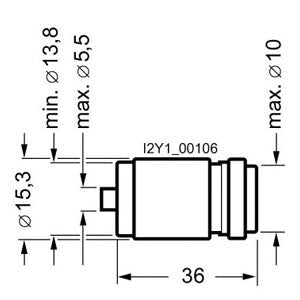

Physical Specifications

• Net Weight: 0.015 kg (15g lightweight design)
• Packaging Dimension: 32.00 x 81.00 x 38.00 mm
• Packaging Quantity: 1 Piece

Standards Compliance

• DIN VDE 0636-301
• IEC 60269-3-1
• HD 630.3.1 S3
• DIN VDE 0680

Applications

• General-purpose circuit protection in electrical installations
• Distribution technology applications
• Industrial switchboards and control panels
• Protection of electrical equipment from overload and short circuit conditions
• Suitable for demanding industrial environments

Additional Information

• Country of Origin: Poland
• EAN: 4001869006017
• Article Number: 5SE2363
• RoHS Compliance: Since: 01.06.2006
• WEEE Take-Back Obligation: Yes

Download existing graphical data for this product:

Product Datasheet (PDF)

Complete Product Information
