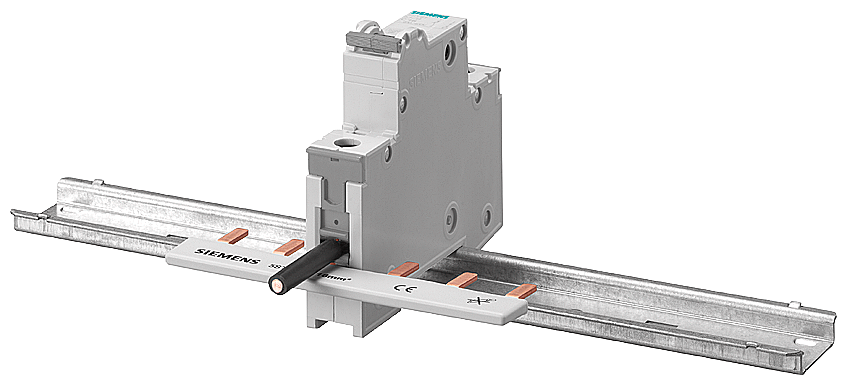

Siemens Miniature circuit breaker, 1-pole, 230/400V, 6kA, 2A Part number 5SY6102-6

Product Overview

The Siemens 5SY6102-6 is a 1-pole miniature circuit breaker (MCB) from the SENTRON / 5SY6 series. It offers overcurrent and short-circuit protection in low-voltage AC (230/400 V) distribution systems, making it suitable for residential, commercial, and industrial control panels and distribution boards.

Key Features

• 1-pole miniature circuit breaker, rated at 2 A nominal current
• Tripping characteristic: Class B — suitable for general lighting and small-load circuits
• Short-circuit breaking capacity: 6 kA (per EN 60898) in AC systems
• Rated for 230/400 V AC supply, compatible with standard single-phase and three-phase networks
• DIN-rail mounting with snap-on installation — compact and quick to install
• Touch-protected terminals and halogen-free design for safety and compliance with industrial standards
• Sealable and suitable for use as a main switch in control cabinets (per EN 60204-1 requirements)

Technical Specifications

• Article Number: 5SY6102-6
• Current Rating: 2 A
• Number of Poles: 1 (1P)
• Supply Voltage: 230 / 400 V AC (50/60 Hz)
• Breaking Capacity (Icn): 6 kA (AC, IEC/EN 60898 standard)
• Operating Voltage (AC, insulation): up to 440 V
• Protection Class: IP20 (with connected conductors)
• Connectable Conductor Cross-Section (solid / stranded): 0.75 – 35 mm²
• Mounting: DIN-rail (snap-on, tool-free)
• Mechanical Service Life: ~10 000 switching cycles
• Ambient Operating Temperature: –25 °C to +55 °C
• Housing Material: Halogen-free, touch-protected terminals
• Sealability: Device body can be sealed — suitable as main switch / isolator

Compliance & Standards

• Conforms to EN 60898-1 / EN 60947-2 for low-voltage circuit protection
• Meets requirements for main-switch use in machinery per EN 60204-1
• Halogen-free and silicon-free enclosure — safer for installations with fire-safety requirements
• Touch-protection and safe terminal design — compliant with VBG 4 / BGV A3 and similar safety standards

Applications

The 5SY6102-6 MCB is ideal for protecting lighting circuits, small loads, control circuits, or auxiliary circuits in residential, commercial, and industrial installations. It can be used in distribution boards, control cabinets, machine panels, and small infrastructure networks — anywhere reliable over-current and short-circuit protection is needed for low-voltage AC circuits.
