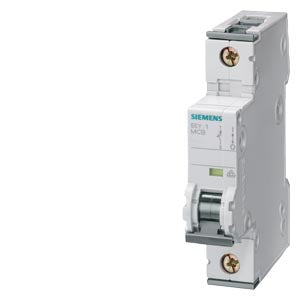

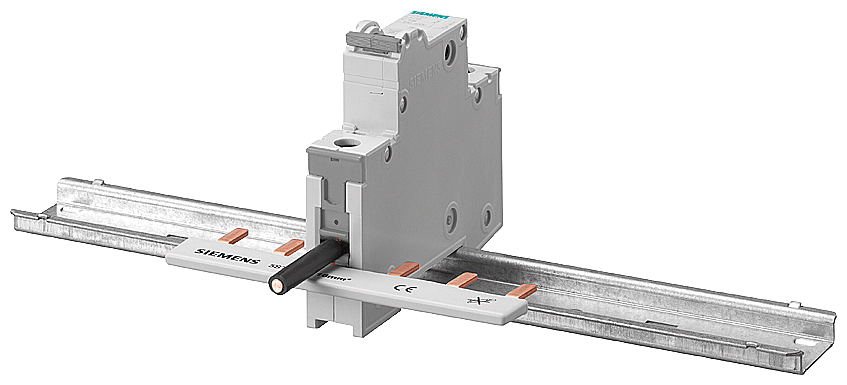

Siemens Miniature circuit breaker, 1-pole, 230/400V, 10kA, 10A

Product Overview

The Siemens 5SY4110-8 is a specialized high-performance miniature circuit breaker designed for reliable protection of high inrush current applications and motor circuits. This compact 1-pole circuit breaker features a 10 A current rating with 230/400 V operational voltage, enhanced 10 kA breaking capacity, and unique D-type tripping characteristic, making it ideal for protecting circuits with high starting currents such as motors, transformers, welding equipment, and high inrush loads from overloads and short circuits.

Key Features

• Enhanced 10 kA Breaking Capacity: Superior protection against fault currents with higher breaking capacity than standard breakers
• Single-Pole Configuration: Space-efficient solution for single-phase line protection in motor and high inrush applications
• D-Type Characteristic: Specialized for high inrush loads with delayed trip response (10-20 times rated current)
• Low-Medium Current Rating: 10 A rating perfect for small motors, transformers, and inductive loads
• Compact Design: Space-efficient construction suitable for standard DIN rail mounting (D=70 mm)
• German Engineering: Manufactured in Germany ensuring premium quality and reliability
• UL1077 Recognition: Certified as supplementary protector for enhanced circuit protection
• Tool-Free Installation: Double slide mechanism enables quick assembly and disassembly without tools

Technical Specifications

• Current Rating: 10 A
• Voltage Rating: 230/400 V AC
• Breaking Capacity: 10 kA
• Number of Poles: 1
• Trip Characteristic: D-type (10-20 times rated current)
• Net Weight: 0.147 kg
• Depth: 70 mm (D=70 mm)
• Width: 1 modular spacing (18 mm)
• Operating Temperature: -25°C to +55°C
• Packaging Dimensions: 21.00 x 93.00 x 83.00 mm
• Country of Origin: Germany
• EAN: 4001869202020

Applications

This high inrush current 1-pole circuit breaker is particularly suitable for:

• Small motor circuit protection
• Transformer primary protection
• Welding equipment circuits
• Inductive load protection
• Solenoid and contactor circuits
• Ballast and lighting transformer protection
• Small pump and compressor motors
• Fan motor control circuits
• Magnetic starter protection
• Induction motor applications
• High inrush lighting systems
• Power supply and converter circuits
• Industrial automation equipment
• Coil and relay protection circuits
• Capacitive load applications

Compliance & Certifications

• Standards Compliance: UL1077 recognized, IEC 60898-1/-2, IEC 60947-2, GB10963.1/.2, GB14048.2
• CE Marking: Complies with global standards for European markets
• RoHS Compliance: Compliant since January 1, 2006
• WEEE Directive: Subject to take-back obligations under directive 2012/19/EU
• REACH Regulation: Contains lead in concentrations higher than 0.1% w/w - safe when used as intended
• Export Control: AL: N / ECCN: N
• Product Class: B - Return restricted, contact Siemens partner for returns

Advanced Features

• High Inrush Tolerance: D-curve provides delayed tripping for high starting currents
• Single Pole Protection: Efficient line protection for single-phase motor applications
• Visual Status Indication: Window design with clear position indicators
• Touch Protection: Anti-finger contact terminal design for enhanced safety
• Dual-Chamber Terminals: Flexible conductor and busbar combinations
• Enhanced Safety: Insulated, dust-proof and anti-touch design
• Ergonomic Handle: Non-slip pattern handle for comfortable operation
• Modular Compatibility: Compatible with wide range of supplementary components
• Energy Limitation: Class 3 current limiting for enhanced protection
• High Breaking Performance: 35 kA breaking capacity according to IEC 60947-2
• Wide Temperature Range: Reliable operation from -25°C to +55°C for harsh environments

Specialized Protection Technology

• Magnetic Trip Point: 10-20 times rated current for maximum inrush tolerance
• Thermal Trip Point: 1.13-1.45 times rated current for precise overload protection
• Delayed Overload Release: Time-dependent thermal bimetal for low overcurrents
• Instantaneous Electromagnetic Release: For high overload and short-circuit currents
• Separate Switch Position Indication: Clear visual confirmation of breaker status
• Motor Protection Optimized: Specifically designed for motor starting characteristics

Product Classification

• eClass: 27-14-19-01 (versions 6-14)
• ETIM: EC000042 (versions 7-9)
• UNSPSC: 39-12-16-03
• IDEA: 4897
• Product Group: 5517
