Siemens LV HRC Fuse element, NH1, live grip lugs, 500V, 160A
View on Siemens 📄 Datasheet
Siemens

Siemens LV HRC Fuse element, NH1, live grip lugs, 500V, 160A Part number 3NA3136

EAN / Barcode 4001869055978
Product Type Control Panel
Product Class Knife blade fuse
Category Power Distribution
Sub-category Accessories
ETIM Class Knife blade fuse
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Lv hrc fuse element, nh1

The LV HRC fuse element ensures effective personal, equipment, and line protection with reliable disconnection in the event of overload and short-circuit.

Technical details:

  • In: 160 A
  • gG
  • Un AC: 500 V
  • Un DC: 440 V
  • Front indicator
  • Live grip lugs
  • SENTRON 3NA3 low-voltage HRC fuse link for selective system and line protection
  • Available from 2 A to 1250 A in sizes 000, 00, 0, 1, 2, 3, 4, and 4a
  • Versions with communication and metering function in size 2 from 80 A to 315 A

Customer benefits:

  • Provides effective personal, equipment, and line protection
  • Reliable disconnection in the event of overload and short-circuit
  • Safe choice with SENTRON circuit protection devices
  • Now made smarter

Technical Specifications

Compliance/StandardsIEC 60269, EN 60269-1, IEC 81346-2
country_of_originGreece
descriptionLV HRC fuse element, NH1, In: 160 A, gG, Un AC: 500 V, Un DC: 440 V, Front indicator, live grip lugs
Fuse construction type according to IEC 60269NH1
IP RatingIP20
IP Rating DetailedIP20 with connected conductors Breaking Capacity breaking capacity at AC according to IEC 60269 rated value 120 kA at DC with time constant

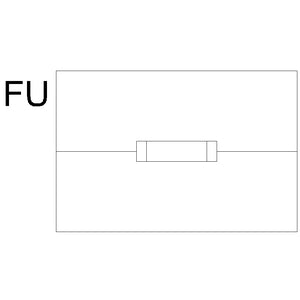

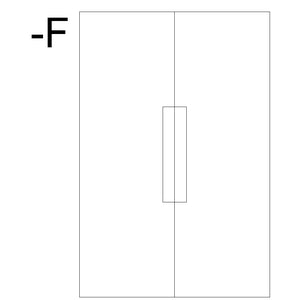

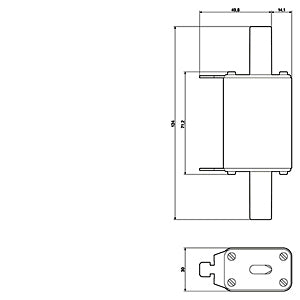

Part Depth (mm)71,00mm
Part Height (mm)93,00mm
Part Width (mm)143,00mm
Power loss at rated current15 W
Rated current160 A
Rated switching capacity AC120 kA
Rated switching capacity DC25 kA
Rated voltage AC500 V
Rated voltage DC440 V
Type of fuse status indicatorTop fuse status indicator
Utilization categorygG (cable protection/equipment protection)
Voltage typeAC/DC
Weight (g)0,289 Kg
View complete specifications on Siemens
