Siemens LV HRC fuse element, insulated grip lugs, 250V, 160A

Product Overview

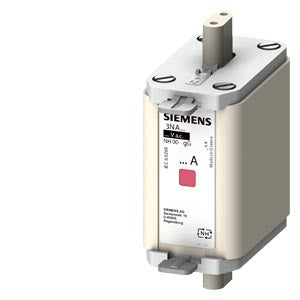

The Siemens 3NA6836 is an advanced low voltage HRC (High Rupturing Capacity) fuse element designed for NH00 fuse systems. This 160A rated fuse provides exceptional protection for AC circuits up to 500V and DC circuits up to 250V, featuring a combined indicator and insulated grip lugs for enhanced safety. This premium fuse element is ideal for demanding industrial and commercial electrical installations requiring superior current capacity with advanced safety features.

Key Features:

• Rated current: 160A with gG operating class for general purpose applications
• Voltage ratings: 500V AC / 250V DC
• High breaking capacity of 120kA (AC) ensures reliable tripping under severe fault conditions
• Combined indicator provides comprehensive visual confirmation when the fuse has operated
• Insulated grip lugs for maximum safety during installation and maintenance
• NH00 size designation for versatile installations
• Silver-plated contact blades for long-term and safe operation
• Enhanced safety features with voltage-free rim design

Applications:

Perfect for selective line protection and system protection in functional buildings, industrial facilities, and power supply installations requiring high current capacity with advanced safety features. The gG operating class makes it suitable for cable and line protection applications, providing dependable overcurrent protection for high-power motors, transformers, and general electrical circuits. Part of the SENTRON protective components family for comprehensive electrical installation protection.

Technical Advantages:

• Superior current limitation reduces stress on downstream equipment
• Combined indicators signal fuse tripping with clear color change from red to white
• Greater safety when replacing thanks to insulated grip lugs
• High selectivity at low cost for optimal system protection
• Long-term and safe operation thanks to silver-plated contact blades
• Better current limitation compared to miniature circuit breakers
• Higher short-circuit current handling capability
• Reliable shutdown function in the event of overload or short circuit

Standards Compliance:

Manufactured to DIN VDE 0636, DIN VDE 0636-2, and CSA 22.2 No. 106 standards. Part of the LV HRC fuse system 3NA, 3ND for selective line and system protection, ensuring compliance with international safety and performance standards.

Physical Specifications:

• Net weight: 0.445 lb (0.202 kg)

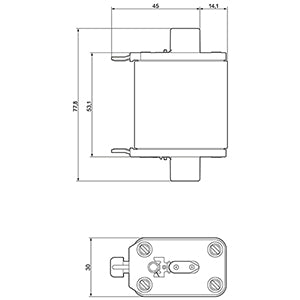

• Packaging dimensions: 3.268 x 3.74 x 2.638 inches
• Country of origin: Greece
• EAN: 4001869071336
• UPC: 754554768663

Environmental Compliance:

RoHS compliant. WEEE (2012/19/EU) take-back obligation applies. Contains lead as disclosed under REACH Article 33 requirements. Return restricted product - please contact your Siemens partner for return procedures.
