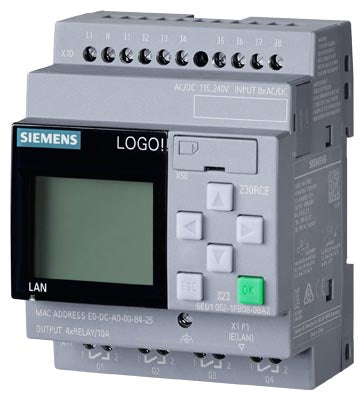

Siemens Logo 230RCE Logic module, display, 8DI / 4DOV, 115 - 230V Part number 6ED1052-1FB08-0BA2

Product Overview

The Siemens LOGO! 230RCE logic module (6ED1052-1FB08-0BA2) features an integrated display, is capable of operating on 115 V or 230 V AC/DC supply, and provides 8 digital inputs and 4 relay outputs. With a program capacity of 400 function blocks, modular expandability, Ethernet connectivity, integrated web server, data-logging, user-defined web pages, and compatibility with microSD cards, this unit serves small automation, building control, and I/O-logic applications requiring compact, networked control.

Key Features

• Supply voltage: 115 V or 230 V AC/DC
• 8 digital inputs and 4 relay outputs
• Display integrated on the unit for status and programming feedback
• Program capacity: up to 400 function blocks
• Expandable via eligible LOGO! modules for I/O extension
• Ethernet interface with integrated web server, data-logging, and user-defined web pages
• Standard microSD card slot for program storage and project handling
• Cloud connection and MQTT support (LOGO! 8.4 models)

Technical Specifications

• Article Number: 6ED1052-1FB08-0BA2
• Product Family: LOGO! 230RCE logic module
• Supply Voltage (DC): 115 V DC or 230 V DC (permissible range 100 … 253 V DC)
• Supply Voltage (AC): 115 V AC or 230 V AC at 50/60 Hz
• Digital Inputs: 8
• Digital Outputs: 4 relay outputs (max. switching: 3 A inductive / 10 A resistive)
• Program Blocks: Up to 400 function blocks; time-switch capacity: up to 400 clocks; power reserve ~480 h
• Mounting: DIN-rail (35 mm); width approx. 71.5 mm; height approx. 90 mm; depth approx. 60 mm
• Ambient Operating Temperature: -20 °C … +55 °C
• Protection Rating: IP20 (when installed)

Compliance & Certifications

• CE marked and developed in accordance with IEC 61131 and VDE 0631 standards
• UL and FM approvals; EMC emission meets EN 55011 Class B (suitable for residential areas)
• Designed for use in compact automation, building control and OEM applications

Applications

This logic module is ideal for compact automation tasks, small machinery, building-automation control, HVAC systems, and I/O logic installations where space is limited but network and data-capability is needed. Its Ethernet connectivity, data-logging capability and expandable I/O make it especially suitable for remote monitoring, machine diagnostics and simple programmable logic functionalities in distributed automation installations.
