Siemens Integrated LED module, spring, red, 24VAC/DC

Product Overview

LED module with integrated LED 24 V AC/DC, red, Spring-loaded terminal, for front plate mounting from the SIRIUS ACT series. This energy-efficient LED illumination module combines critical red emergency lighting with tool-free spring-loaded terminal technology, providing reliable visual indication in industrial automation applications.

Key Features

• Integrated LED technology for superior illumination
• Red color for critical alerts and emergency indication
• 24 V AC/DC dual voltage capability
• Spring-loaded terminal connection for tool-free wiring
• Front plate mounting configuration
• Energy-efficient LED technology with extended operational lifespan
• High luminosity output for excellent visibility
• Part of the SIRIUS ACT portfolio with worldwide product approvals
• Innovative snap-on concept for easy installation with one hand and without special tools

Technical Specifications

• LED Color: Red
• Operating Voltage: 24 V AC/DC
• Frequency: 50/60 Hz (AC operation)
• Connection Type: Spring-loaded terminal (cage clamp)
• Mounting Method: Front plate mounting

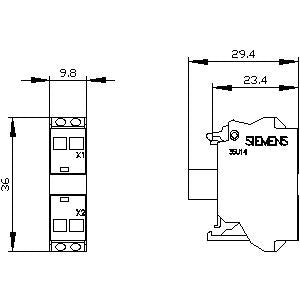

• Dimensions: 36mm H x 9.8mm W x 29.4mm D
• Net Weight: 0.007 kg
• Packaging Dimensions: 37.00 x 104.00 x 17.00 mm
• Country of Origin: Czech Republic
• EAN: 4011209943001
• UPC: 804766073472

Compliance & Standards

• RoHS compliant since 01.10.2014
• WEEE (2012/19/EU) Take-Back Obligation: Yes
• Export Control Regulations: AL: N / ECCN: N
• REACH Article 33 compliance for specific substances

Applications This red LED module with spring-loaded terminals is designed for illuminating SIRIUS ACT pushbuttons and indicator lights in critical industrial automation systems. Perfect for emergency stop indication, alarm signaling, fault notification, critical process alerts, and safety-related visual communication where tool-free maintenance is essential. The red color is industry-standard for emergency, danger, and critical warning applications.

LED Technology Benefits

• Energy efficiency: Significantly lower power consumption compared to traditional incandescent bulbs
• Extended lifespan: Long operational life reduces maintenance requirements
• Instant illumination: No warm-up time for immediate visual feedback
• Vibration resistance: Solid-state technology withstands industrial environments
• Temperature stability: Consistent performance across wide temperature ranges
• High reliability: Reduced failure rates compared to conventional lighting

Mounting & Installation

• Front plate mounting design for standard panel installations
• Snap-on concept allows one-hand installation
• No special tools required for assembly
• Compatible with SIRIUS ACT pushbuttons and indicator lights
• Groove-free mounting holes with integrated twist prevention
• Secure mounting prevents accidental disconnection

Spring-Loaded Terminal Benefits

• Tool-free connection: No screwdrivers or special tools required for wire insertion
• Push-in technology: Quick and secure wire connection saves installation time
• Reliable spring contact: Consistent clamping force maintains secure connections
• Maintenance-friendly: Easy wire removal and replacement without tools
• Vibration resistant: Spring mechanism maintains contact integrity in dynamic environments
• Wide wire range compatibility: Accommodates various wire gauges
• Reduced installation errors: Visual confirmation of proper wire insertion
• Fast maintenance: Quick connection changes during service operations

Red LED Advantages

• Emergency indication: Industry-standard color for danger and emergency signals
• Critical alerts: Perfect for fault conditions and alarm states
• High visibility: Excellent contrast and attention-grabbing capability
• Universal recognition: Globally understood emergency and danger indication
• Safety compliance: Meets international standards for safety signaling
• Immediate response: Commands instant attention for critical situations

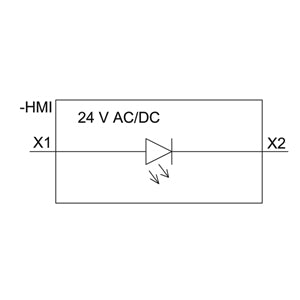

Electrical Features

• Dual voltage capability: 24 V AC/DC operation for flexible power supply options
• Low current consumption: Energy-efficient operation reduces system power requirements
• Spring-loaded connection: Secure and reliable electrical connections
• Voltage tolerance: Stable operation across voltage variations
• Quick connect/disconnect: Ideal for rapid maintenance procedures

Environmental Durability

• Industrial grade construction: Suitable for demanding industrial environments
• High degree of protection: Designed for industrial and outdoor use
• High-pressure cleaning capability: Can withstand high-pressure jet cleaning
• Rugged design: Genuine metal and high-grade plastic construction
• Chemical resistance: Suitable for various industrial chemical environments

Integration Capabilities

• SIRIUS ACT compatibility: Seamless integration with SIRIUS ACT pushbuttons and indicators
• System flexibility: Easy incorporation into existing control panels
• Modular design: Simple replacement and maintenance procedures
• Universal mounting: Standard front plate configuration
• Panel efficiency: Compact design maximizes panel space utilization

Combined Benefits The unique combination of red LED technology and spring-loaded terminals makes this module particularly suitable for:

• Emergency stop systems requiring rapid maintenance and critical visibility
• Safety-critical applications where tool-free servicing is essential
• High-maintenance environments where quick connection changes are needed
• Industrial automation requiring both fail-safe indication and installation efficiency

Visual Performance

• High luminosity: Excellent brightness for clear visibility in critical applications
• Uniform illumination: Even light distribution for consistent appearance
• Color consistency: Reliable red output throughout operational life
• Contrast optimization: Clear distinction from other panel indicators
• Professional appearance: Clean, modern aesthetic for industrial applications

Product Classification

• eClass: 27-37-12-09
• ETIM: EC000204
• UNSPSC: 39-12-15-44
