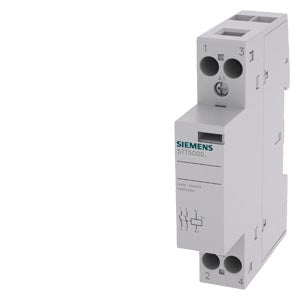

Siemens Insta Contactor, 2NO contacts, 230VAC, 20A

Product Overview

The 5TT5 Insta Contactor is a versatile switching device designed for residential, industrial, and infrastructure applications. This compact contactor features dual normally open contacts for reliable electrical control, operating at 230V AC and 400V AC with 20A switching capacity. Part of the innovative SENTRON component family, it provides essential switching functions with user-friendly installation and reliable safety features.

Key Features & Specifications

• Contact Configuration: 2 normally open (NO) contacts for enhanced control capabilities
• Operating Voltage: 230V AC, 400V AC switching capacity
• Current Rating: 20A rated operational current
• Control Voltage: AC/24V DC coil operation for versatile control compatibility
• Protection: IP20 protection class against dust and particles

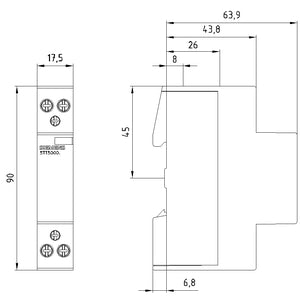

• Dimensions: Compact 1 modular unit design, installation depth 64mm
• Mounting: DIN rail mounting for standard control panel installation
• Terminals: Screw terminal connections for secure wiring
• Applications: Suitable for motor control, lighting systems, and industrial equipment

Technical Characteristics

• Voltage Type: AC operating voltage with AC/DC actuating voltage capability
• Contact Type: 2 NO contacts, 0 NC contacts
• Modular Units: 1 standard modular unit width
• Safety Features: Standard touch protection during installation
• Installation: Easy connection technology with user-friendly design
• Versatility: Compatible with both AC and DC control voltages

Applications & Features

Ideal for diverse switching applications in residential buildings, commercial infrastructure, and industrial automation systems. Perfect for motor control in HVAC systems, building lighting control, and manufacturing equipment operation. Features innovative switching technology as part of SENTRON electrical installation components, providing countless possibilities for implementing various switching functions with reliable performance and safety.

Compliance & Certifications

• Weight: 0.141 kg, Packaging: 79.00 x 92.00 x 21.00 mm
• Standards: RoHS compliant (since February 2011), WEEE compliant
• Origin: Slovenia, EAN: 4001869434964
• Safety: No current SVHC substances identified, regular monitoring per REACH requirements
