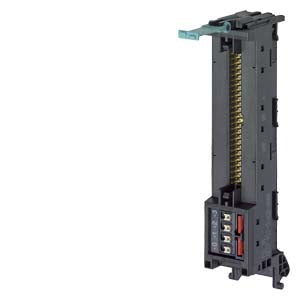

Siemens Front connector module with 1x50 pole, IDC connector

Product Overview

The Siemens 6ES7921-5CH20-0AA0 is a front connector module designed for SIMATIC S7-1500 digital 32 I/O modules, featuring a single 50-pole IDC (Insulation Displacement Connector) for streamlined cable connections. This specialized module provides potential supply over push-in terminal technology and represents a modified front connector solution for digital I/O applications. The module is part of the fully modular SIMATIC TOP connect system, enabling fast and safe system cabling for advanced digital automation installations.

Key Features

• Single 50-Pole IDC Connector: High-density connection interface for digital signals
• Digital I/O Compatibility: Specifically designed for 32-pole digital I/O modules
• Push-in Terminal Technology: Advanced potential supply over push-in terminals
• Plug-and-Play Design: Direct replacement for standard front connector
• SIMATIC TOP Connect: Part of modular connection system for enhanced reliability
• Compact Form Factor: Lightweight design at only 0.080 kg
• Industrial Grade: Engineered for demanding automation environments
• Direct Mounting: Seamless integration with S7-1500 modules
• Tool-Free Connection: Push-in terminals eliminate need for screwdrivers

Technical Specifications

• Connector Type: Front connector module with 1x50 pole IDC connector
• Compatible Systems: SIMATIC S7-1500 digital 32 I/O modules
• Rated Voltage: 24V
• Number of Poles: 40 poles
• Connection Type: IDC (Insulation Displacement Connector)
• Potential Supply: Push-in terminal
• Mounting Type: Direct mounting
• Material Color: Black
• Conductor Cross-sections:
  • Fine-strand with cable end sleeve: 0.25 mm²
  • Fine-strand without cable end sleeve: 0.5 mm²
  • Multi-wired: 0.5 mm²
• Weight: 0.080 kg
• Packaging Dimensions: 5.00 x 13.30 x 3.40 cm
• Country of Origin: Romania
• EAN: 4047623602484
• UPC: 887621849870

Applications

This front connector module is specifically engineered for digital signal processing applications in SIMATIC S7-1500 systems. It enables efficient connection of 50-pole cables to digital I/O modules, facilitating reliable switching and monitoring of digital signals in factory automation, process control, building automation, machine control, and other industrial applications requiring fast and secure digital I/O connectivity.

System Integration Benefits

• Modular Connection System: Integral part of SIMATIC TOP connect for systematic cabling
• Error Source Reduction: Significantly reduces wiring errors and installation mistakes
• Low Wiring Costs: Minimizes installation time and labor requirements
• Enhanced Maintainability: Simplified troubleshooting and system modifications
• Push-in Terminal Advantages: Tool-free wiring for faster installation
• Peripheral Integration: Seamless connection of sensors and actuators via connection modules
• Signal Integrity: Optimal signal transmission for digital applications
• Future-Proof Design: Supports system expansion and reconfiguration

Installation Advantages

The module plugs directly into the digital I/O module, replacing the standard front connector. Cable connections are made via the 50-pole IDC connector, which accommodates connecting cables that link to connection modules. The push-in terminal technology provides integrated potential supply without requiring tools, significantly reducing installation time while ensuring secure connections.

Push-in Terminal Technology

The integrated push-in terminals offer significant advantages over traditional screw terminals, including tool-free installation, faster wiring, consistent connection quality, and reduced maintenance requirements. This technology is particularly beneficial in applications requiring frequent system modifications or expansions.

SIMATIC TOP Connect System

This front connector module is a crucial component of Siemens' SIMATIC TOP connect fully modular connection system. The system delivers fast and safe system cabling for digital applications, dramatically reducing installation complexity while improving system reliability. Sensors and actuators are connected to SIMATIC TOP connect connection modules and linked to the S7-1500 system via connecting cables and this front connector module.

Performance Characteristics

• High Signal Density: 50-pole IDC connection maximizes signal throughput
• Robust Construction: Engineered for continuous operation in industrial environments
• EMC Compatibility: Designed to minimize electromagnetic interference
• Vibration Resistance: Secure connections withstand industrial vibrations
• Temperature Stability: Reliable operation across industrial temperature ranges
• Quick Connection: IDC technology enables rapid and secure cable termination
• Maintenance-Free: Push-in terminals require minimal ongoing maintenance

Compliance & Certifications

• RoHS Compliant: Since 01.03.2014
• WEEE Compliance: Take-back obligation applicable
• REACH Regulation: Contains lead in concentrations higher than 0.1% w/w (safe for intended use)
• Export Control: AL: N / ECCN: EAR99H

Product Status

This is an active product (PM300) with ongoing availability and full technical support from Siemens.
