Siemens Enclosure+protective collar, emergency stop p/button

Product Overview

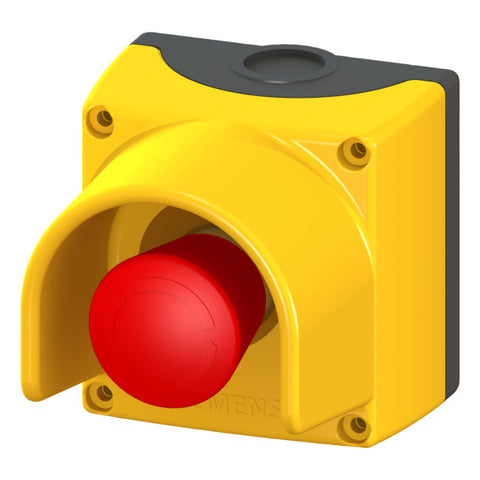

Enclosure for command devices featuring 22mm round design with plastic construction and yellow enclosure top part. This professional-grade emergency stop pushbutton station includes a red 40mm mushroom pushbutton with rotate-to-unlatch mechanism, protective collar, and 1NC contact configuration, designed for critical safety applications requiring reliable emergency shutdown capabilities in industrial environments.

Technical Specifications

Article Number: 3SB3801-0DF3

Electrical Characteristics:

• Contact configuration: 1NC (1 Normally Closed)
• Terminal type: Screw terminal
• Mounting type: Floor mounting
• Cable entry: Top and bottom 1 x M20 each
• Emergency stop: 40mm mushroom pushbutton
• Release mechanism: Rotate-to-unlatch

Design Features:

• Round 22mm enclosure design
• Plastic enclosure material
• Yellow enclosure top part
• Red emergency stop mushroom pushbutton
• Protective collar included
• Rotate-to-unlatch safety mechanism
• Single command point design
• IP65 protection rating
• Floor mounting configuration

Application Areas:

• Emergency stop systems
• Machine safety circuits
• Industrial control panels
• Process automation safety
• Manufacturing equipment
• Safety interlock systems
• Critical shutdown applications

Physical Properties:

• Net weight: 0.280 kg
• Packaging dimensions: 123.00 x 98.00 x 92.00 mm
• Mounting diameter: 22mm
• Pushbutton diameter: 40mm
• Packaging quantity: 1 piece
• Country of origin: Germany

Product Identifiers:

• EAN: 4011209513563
• UPC: 754554892252

Compliance & Environmental:

• RoHS Compliance: Since 01.07.2006
• WEEE Take-Back Obligation: Yes
• REACH Regulation: No substances of very high concern identified

Standards Compliance:

• UL certified
• CSA certified
• CE marked
• IP65 protection rating
• EN ISO 13850 emergency stop compliance
