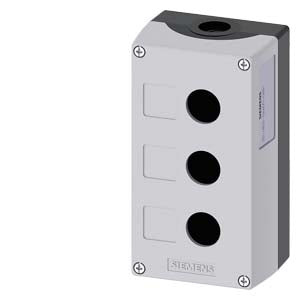

Siemens Enclosure for command devices, grey, 3 holes, 22 mm
Log in to view pricing
Sign in with your trade account to access live pricing and place orders. New to Rubicon Industrial Technology? Create an account in seconds.
Product Description
Enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 3 control points plastic, Recess for labels, without equipment Enclosures SIRIUS ACT for mounting the 22.5 mm pushbuttons and indicator lights for separately allocated control units and cabinets. Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in three modern design lines of rugged genuine metal and high-grade plastic.An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available. Versions available: Yellow/gray, plastic/metal, 1-6 command points, empty enclosure/pre-equipped, optionally with AS-Interface connection. SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
- Depth: 64 mm
- Width: 85 mm
- Height: 154 mm
- Degree of protection (NEMA): Other
- Construction type housing: Surface mounted housing
- Diameter openings: 22.3 mm
- Housing material: Plastic
- Number of command positions: 3
- Colour housing cover: Grey
- Degree of protection (IP): IP67/IP69K
Key Siemens Features
| Depth | 64 mm |
|---|---|
| Width | 85 mm |
| Height | 154 mm |
| Degree of protection (NEMA) | Other |
| Construction type housing | Surface mounted housing |
| Diameter openings | 22.3 mm |
| Housing material | Plastic |
| Number of command positions | 3 |
| Colour housing cover | Grey |
| Degree of protection (IP) | IP67/IP69K |
Searchable Keywords
3SU1
Command Device
Command Device Configurator
Commanding and Signaling Device
Enclosure
SIRIUS ACT
Sensor
Signaling Unit
Signaling devices
Switch
sirius act configurator
Packaging & Logistics
Minimum Pack Quantity
1
Maximum Pack Quantity
1
Packaging Code
PA
Shipping Weight
0.37 kg
Carton Length
16.5 cm
Carton Width
10 cm
Carton Height
8 cm
