Product Overview

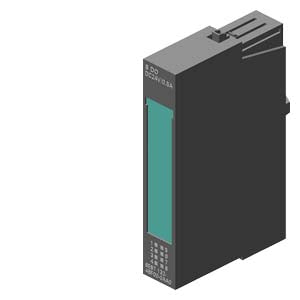

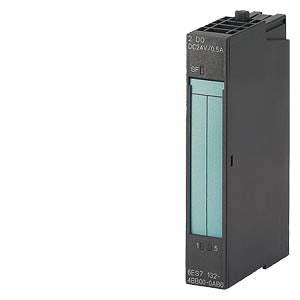

Electronics module for ET 200S, 8 DO 24 V DC/0.5 A, 15 mm width, 1 unit per packing unit. This compact digital output module is designed for the SIMATIC ET 200S distributed I/O system, providing reliable 24V DC control outputs for industrial automation applications requiring precise switching and control capabilities.

Key Features

Output Configuration:

• 8 digital output channels
• 24V DC operation with 0.5A per channel
• Compact 15 mm width design
• Individual channel control and monitoring

System Integration:

• Compatible System: SIMATIC ET 200S distributed I/O
• Module Width: 15 mm for space-efficient installation
• Packing Unit: 1 piece per package
• Communication: PROFIBUS DP integration

Performance Specifications:

• Output Type: Digital outputs (DO)
• Voltage Rating: 24V DC
• Current Rating: 0.5A per output
• Switching Speed: 300 μs (off to on), 600 μs (on to off)

Technical Specifications

Output Characteristics:

• Output Channels: 8 digital outputs
• Output Voltage: 24V DC
• Output Current: 0.5A per channel
• Output Type: Transistor outputs
• Switching Performance: Fast response times

Physical Characteristics:

• Net Weight: 0.044 kg

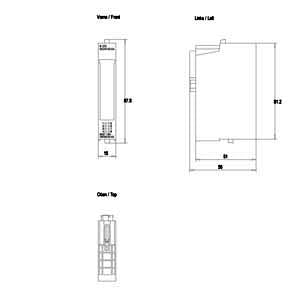

• Dimensions: 81 mm (H) × 15 mm (W) × 52 mm (D)
• Packaging Dimensions: 6.00 x 9.10 x 2.20 cm
• Width: 15 mm for compact installation

System Specifications:

• Protection Rating: IP20
• Operating Temperature: 0°C to +60°C
• Connection Type: Plug-in terminal connection
• Communication: PROFIBUS DP interface
• Mounting: DIN rail via terminal module

Diagnostic Features:

• Short Circuit Detection: Built-in protection
• Status LED (SF): System fault indication
• Module Diagnostics: Integrated fault monitoring
• Channel Status: Individual output monitoring

Standards and Compliance:

• RoHS Compliance: Yes, since 31.12.2008
• WEEE Take-Back Obligation: Yes
• Export Control: ECCN: N / AL: N
• Country of Origin: China

Product Information:

• EAN: 4025515074670
• UPC: 662643216585
• Packaging Quantity: 1 piece
• Quantity Unit: 1 Piece

Applications

The SIMATIC ET 200S Digital Output Module is ideal for:

• Industrial automation and process control
• Machine control applications
• Factory automation systems
• Distributed control systems
• PROFIBUS DP networks
• Actuator and valve control
• Motor control applications
• Lighting and signaling systems

System Architecture

ET 200S System Benefits:

• Compact Design: 15 mm width for space efficiency
• Modular Architecture: Flexible system configuration
• Distributed I/O: Decentralized control capabilities
• Cost-Effective: Optimized for standard applications
• Easy Integration: PROFIBUS DP communication

Module Categories:

• Digital input/output modules
• Analog input/output modules
• Power modules
• Communication modules
• Terminal modules

Installation and Configuration

Mechanical Installation:

• Terminal Module Required: Mounts on terminal module base
• 15 mm Width: Space-efficient cabinet installation
• DIN Rail Mounting: Standard installation method
• IP20 Protection: Suitable for control cabinet environments

Electrical Connection:

• 8 Output Channels: Individual terminal connections
• 24V DC Supply: Standard industrial voltage
• 0.5A per Channel: Suitable for most control applications
• Fast Switching: Responsive output performance

System Configuration:

• STEP 7 Integration: Programming and configuration
• PROFIBUS DP: Real-time communication
• Module Diagnostics: Fault detection and reporting
• Hot Swapping: Module replacement during operation

Performance Characteristics

Switching Performance:

• Off to On Time: 300 μs typical
• On to Off Time: 600 μs typical
• Output Current: 0.5A maximum per channel
• Voltage Rating: 24V DC nominal

Diagnostic Capabilities:

• SF LED: System fault indication
• Short Circuit Detection: Automatic protection
• Wire Break Detection: Comprehensive monitoring
• Module Status: Real-time diagnostic feedback

Compatibility

Terminal Module Requirements:

• Compatible Bases: Various terminal module options
• Wiring Options: Screw or spring terminals available
• Color Coding: Easy identification system
• Hot Swapping: Field replaceable modules

System Integration:

• ET 200S Interface Modules: IM 151 series compatibility
• PROFIBUS DP: Standard communication protocol
• STEP 7 Software: Programming and diagnostics
• S7 Controllers: Full system integration

Migration Information

System Evolution:

• Current Technology: ET 200S (legacy system)
• Successor System: ET 200SP (current generation)
• Migration Path: ET 200SP offers enhanced features
• Compatibility: Direct functional replacement available

Future Planning:

• For new installations, consider ET 200SP system
• ET 200S suitable for maintenance and expansion of existing systems
• Migration tools available for system upgrades
• Technical support available for both platforms

REACH Compliance Notice

This product contains Lead monoxide (lead oxide) in concentrations higher than 0.1% weight by weight (w/w) as per REACH Article 33 duty to inform. Based on available information, this substance does not pose risk when the product is used as intended, including disposal. Please refer to product documentation for additional information.
