Product Overview

IMPORTANT NOTE: This product has been cancelled since 01.10.2023. The successor is the ET 200SP system with its compact motor starter modules.

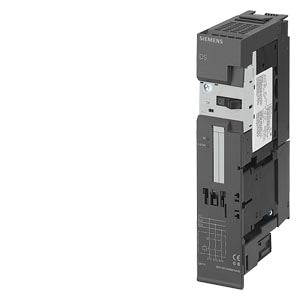

The 3RK1301-1HB00-0AA2 was a DS1-X motor starter designed for ET 200S distributed I/O systems. This standard direct-on-line (DOL) starter provided expandable electromechanical motor protection with a setting range of 5.5...8 A AC-3, rated for 3 kW / 400 V applications. The unit was specifically designed for brake control module applications and offered reliable motor starting capabilities in distributed automation systems.

Key Features

Motor Protection: Electromechanical starter with adjustable setting range from 5.5 to 8 A AC-3 for reliable motor protection.

Power Rating: Rated for 3 kW / 400 V applications, suitable for medium-sized motor control applications.

Expandable Design: Standard DOL starter with expandable configuration options for enhanced functionality.

Brake Control: Specifically designed for brake control module applications, providing specialized motor control capabilities.

ET 200S Integration: Designed for seamless integration with ET 200S distributed I/O systems.

Direct-On-Line Starting: DOL starter configuration for straightforward motor starting applications.

Technical Specifications

• Setting Range: 5.5...8 A AC-3
• Power Rating: 3 kW / 400 V
• Starter Type: Direct-On-Line (DOL)
• Configuration: Expandable
• Application: Brake control module
• System Integration: ET 200S distributed I/O
• Net Weight: 0.887 kg
• Packaging Dimensions: 198.00 x 286.00 x 112.00 mm
• Country of Origin: Germany

Product Status & Successor Information

Product Lifecycle: This product has been cancelled (PM410: Product cancellation) effective 01.10.2023.

Successor System: The ET 200SP system with its compact motor starter modules provides enhanced functionality and modern design:

• SIMATIC ET 200SP Motor Starter: Compact design with just 30 mm width
• Power Range: Up to 5.5 kW with multiple setting ranges
• Enhanced Protection: Reliable overload and short-circuit protection
• System Integration: Part of SIMATIC ET 200SP distributed I/O system
• Configuration: Faster configuration in TIA Portal
• Versions: Available in standard and safety versions

Migration Path

For new installations or replacements, consider the following ET 200SP alternatives:

• 3RK1308 Series: SIMATIC ET 200SP motor starters
• Enhanced Features: Modern design with improved functionality
• Compatibility: Seamless integration with current automation systems
• Future-Proof: Part of the current SIMATIC product portfolio

Applications & Benefits

The DS1-X motor starter was designed for:

• Motor control in distributed automation systems
• Brake control module applications
• Industrial motor starting applications
• ET 200S system integration
• Medium-power motor protection (3 kW / 400 V)

Quality & Compliance

• RoHS Compliance: Since 26.10.2016
• Product Lifecycle: PM410: Product cancellation (since 01.10.2023)
• Export Control: ECCN: N / AL: N
• WEEE Compliance: Take-back obligation applicable
• EAN: 4011209513006
• UPC: 040892691740
