Siemens

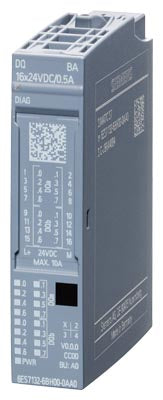

Siemens Digital output module, DQ 16x 24VDC, 0.5A Part number 6ES7132-6BH00-0AA0
Back Order
View Full Product Details on Siemens
💬
Ask an Expert - Technical Support Available
Product Description
This SIMATIC ET 200SP digital output module features 16 outputs for 24 V DC with a maximum current of 0.5 A per output. It is designed for use with BU type A0 BaseUnits and offers short-circuit protection, making it ideal for distributed I/O systems in automation applications.
Technical Specifications
| Country of Origin | Germany |
| Temperature: Operating | -30°C to 50/60°C |
| Part Depth (mm) | 58mm |
| Part Width (mm) | 15mm |
| Part Height (mm) | 73mm |
| Weight (g) | 30g |
| Supply Voltage | 24 VDC |
| Current Consumption | 55 mA; without load |
