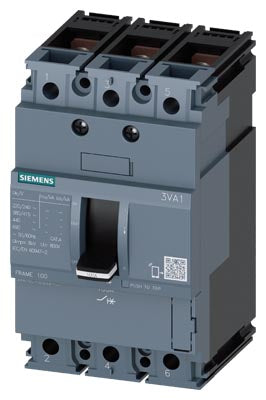

Siemens circuit breaker Frame 100 breaking capacity class B Icu=16 kA @ 415 V 3-pole line protection TM210, FTFM, In=32 A overload protection Ir=32 A Part number 3VA1032-2ED32-0AA0

Product Overview

The Siemens 3VA1032-2ED32-0AA0 is a SENTRON 3VA1 family moulded-case circuit breaker in frame size 100, designed for line protection in industrial distribution systems. It is a 3-pole device rated for an operational current of 32 A, offering reliable overload and fixed short-circuit protection in compact switchgear.

Key Features

• SENTRON 3VA1 circuit breaker series (frame 100)
• 3-pole construction for three-phase protection
• Rated operational current In: 32 A
• Fixed short-circuit protection (Ii = 10 × In)
• Rated insulation voltage Ui: 800 V
• Rated operational voltage: up to 690 V AC / 500 V DC
• High breaking capacity: up to 25 kA @ 415 V (IEC 60947) in class N

Technical Specifications

• Article Number: 3VA1032-2ED32-0AA0
• Series: SENTRON 3VA1
• Rated Current (In): 32 A
• Poles: 3
• Breaking Capacity (Icu at 415 V): 25 kA
• Rated Insulation Voltage (Ui): 800 V
• Operational Voltage (Ue): up to 690 V AC / 500 V DC
• Power Loss (max): 10.6 W

Compliance & Certifications

• Manufactured under Siemens SENTRON industrial protection equipment standards
• Complies with IEC 60947-2 / EN 60947-2 standards for low-voltage circuit-breakers

Applications

Ideal for industrial three-phase distribution boards, control panels and switchgear that require compact, high-performance protection for loads up to 32 A. Suitable for motor feeders, branch circuits and general power protection in manufacturing and infrastructure settings.
