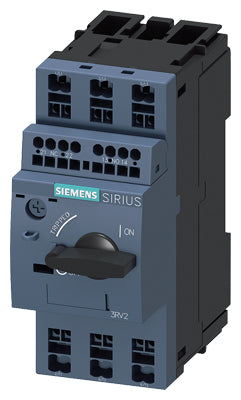

Siemens Circuit breaker for motor protection, size S00, 2.2-3.2A Part number 3RV2011-1DA25

Product Overview

The Siemens 3RV2011-1DA25 is a SIRIUS 3RV2 series motor-protection circuit breaker, size S00, designed for protection of small motors and industrial loads. It provides an adjustable overload release range of 2.2 … 3.2 A and features a fixed instantaneous short-circuit release at 42 A. Its compact construction, spring-type terminals and standard switching capacity make it suitable for DIN-rail or panel mounting in control cabinets.

Key Features

• Motor-protection circuit breaker (MPCB) from the Siemens SIRIUS 3RV2 series
• Size designation: S00 for compact mounting
• Adjustable overload release (Ir): 2.2 to 3.2 A
• Fixed short-circuit release (instantaneous trip) at 42 A
• Includes auxiliary contacts: 1 NO + 1 NC for signalling or control feedback
• Spring-type terminals for main and auxiliary circuits for secure, vibration-resistant wiring
• Standard switching capacity with high breaking rating for compact motor protection applications

Technical Specifications

• Product Series: SIRIUS 3RV2
• Article Number: 3RV2011-1DA25
• Size: S00
• Adjustable Overload Range (Ir): 2.2 … 3.2 A
• Operational Current (Iu): 3.2 A at AC-3 (400 V)
• Fixed Short-Circuit Release (Instantaneous): 42 A
• Rated Voltage (Ue): 20 … 690 V AC, 50/60 Hz
• Number of Poles: 3 (3-phase motor protection)
• Auxiliary Contacts: 1 NO + 1 NC
• Mounting / Terminals: Spring-type terminals; DIN-rail or panel mounting
• Ambient Operating Temperature: –20 °C to +60 °C
• Breaking Capacity (Icu): Up to 100 kA at 400 V AC

Compliance & Certifications

• Manufactured by Siemens under the SIRIUS motor-protection product line
• Complies with IEC/EN standards for automatic circuit-breakers and motor-protection devices (IEC 60947-2 series)

Applications

Ideal for protecting small three-phase motors and feeders in industrial automation systems, as well as motor control centres and switchgear where compact size, adjustable overload protection and auxiliary signalling are required. Commonly used in machine tools, conveyors, pumps and smaller production lines that require precise motor-overload protection.
