Siemens Circuit breaker for motor protection, screw, size S00, 130A

Product Overview

The 3RV1011-1JA10 circuit breaker is designed for motor protection in size S00 applications, featuring CLASS 10 A-release protection with an adjustable current range of 7 to 10 A and N-release rated at 130 A. This SIRIUS motor starter protector provides comprehensive overload and short-circuit protection for three-phase motors and electrical loads, incorporating screw terminal connections and standard switching capacity for reliable industrial motor control applications.

Key Features

• Current Range: 7 to 10 A adjustable overload release
• Protection Class: CLASS 10 tripping characteristic according to IEC 60947-4-1
• Size: S00 (45mm width) for compact installations
• Short-Circuit Release: 130 A (N-release) factory-set
• Terminal Type: Screw terminals with M3 combination screws
• Switching Capacity: Standard switching capacity rating
• Phase Loss Protection: Built-in phase loss sensitivity
• Manual Operation: Toggle switch with integrated locking device
• Test Function: Built-in test slide for overload release verification
• Breaking Capacity: 100 kA at 400 V AC
• Operating Temperature: -20°C to +60°C with temperature compensation
• Mounting: DIN rail or screw mounting options
• Weight: 0.280 kg

Technical Specifications

• Frequency Rating: 50/60 Hz
• Rated Operational Voltage: Up to 690 V AC
• Poles: 3-pole configuration
• Tightening Torque: 0.8-1.2 Nm for screw terminals
• Conductor Cross-Section: 2 x (0.5...1.5) mm² to 2 x (1...4) mm²
• Breaking Capacity: 100 kA short-circuit breaking capacity at 400 V AC
• Installation Altitude: Up to 2,000 m above sea level
• Degree of Protection: IP20 front face
• Connection System: Screw-type with up to two different conductor cross-sections
• Standards Compliance: IEC 60947-1, IEC 60947-2, IEC 60947-4-1
• Lockout Capability: Padlock shackle diameter 3.5-4.5 mm

Applications

The 3RV1011-1JA10 is suitable for protecting three-phase motors and electrical loads in industrial automation applications where reliable overload and short-circuit protection is required for motor currents between 7-10 A. It provides inverse time-delayed protection against overload conditions and instantaneous protection against short-circuits, making it ideal for motor control centers, industrial machinery, manufacturing equipment, and SIRIUS modular system integration requiring size S00 protection.

Operation

When an overload occurs, the motor current rises above the set rated current, heating the integrated bimetal element and causing the device to trip through thermal-magnetic operation. For short-circuit conditions, the electromagnetic release provides instantaneous protection. The toggle switch allows manual on/off operation with clear position indication. The built-in test function enables verification of overload release operation without electrical load. After tripping, the device must be manually reset by moving the toggle switch to OFF position before reclosing.

Product Information

• Net Weight: 0.280 kg
• Packaging Dimensions: 49.00 x 100.00 x 84.00 mm
• EAN: 4011209263697
• UPC: 754554409047
• Country of Origin: Germany
• Product Class: Standard product, stock item

Compliance & Environmental

• RoHS Compliance: Yes (since 01.01.2013)
• IEC Rating: Yes
• WEEE Take-Back: Yes (2012/19/EU)
• REACH Article 33: Regular screening for substances of very high concern
• Export Control: AL: N / ECCN: N
• International Standards: IEC 60947-1, EN 60947-1, IEC 60947-2, EN 60947-2, IEC 60947-4-1, EN 60947-4-1

Download existing graphical data for this product:

• Technical Data Sheet
• CAx Data & 3D Models
• Equipment Manual

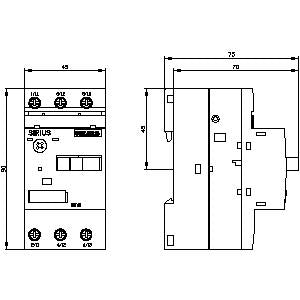

• Dimension Drawings

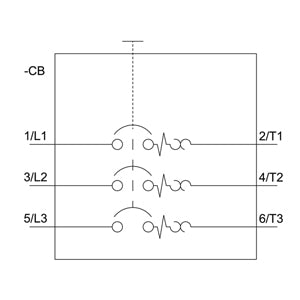

• Circuit Diagrams
