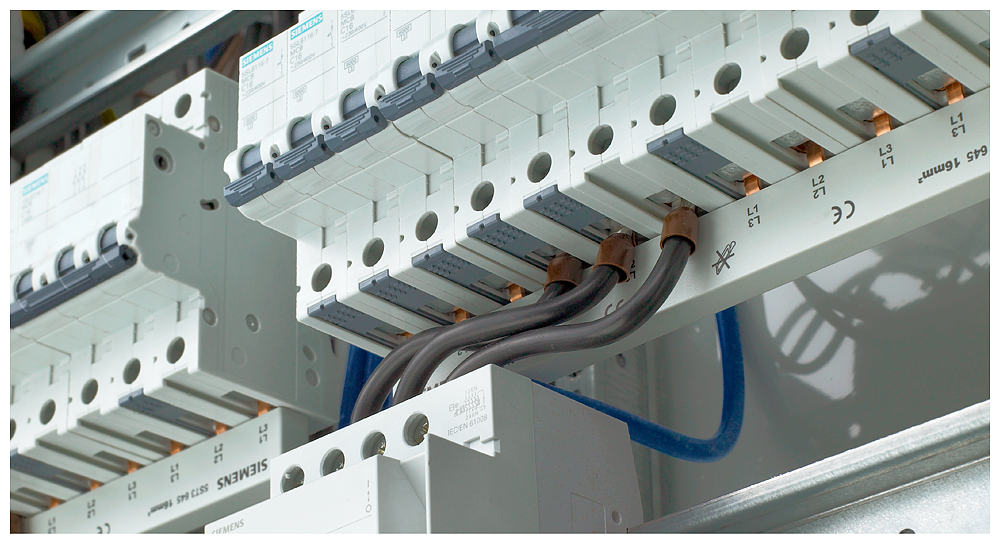

Siemens Circuit breaker, C10, 1+N-pole 1mW, 230V, 6kA Part number 5SL6010-7

Product Overview

The Siemens 5SL6010-7 is a SENTRON miniature circuit breaker in a 1 + N pole configuration, designed to provide protection for single-phase circuits with phase and neutral switching. It features a C-curve tripping characteristic, a rated breaking capacity of 6 kA at 230 V, and is built for reliable operation in residential and infrastructure applications under the Siemens low-voltage protection portfolio.

Key Features

• Miniature circuit breaker from the Siemens SENTRON 5SL60 series
• 1 + N pole configuration (phase + neutral switching)
• Rated current: 10 A (at 30 °C) with C-curve characteristic
• Breaking capacity: 6 kA (EN 60898) in typical low-voltage applications
• Compact width: 18 mm (1 modular unit) for space-efficient panel installation
• Screw-type terminals suitable for solid or stranded conductors up to 16 mm²
• Halogen-free and silicon-free housing material; sealable terminal covers for enhanced safety

Technical Specifications

• Product Series: SENTRON 5SL60
• Article Number: 5SL6010-7
• Poles: 1P + N
• Rated Current (In): 10 A
• Tripping Curve: C-characteristic
• Rated Voltage (Un): 230 V AC (50/60 Hz)
• Rated Insulation Voltage (Ui): 250 V
• Breaking Capacity (Icn): 6 kA
• Width: 18 mm
• Installation Depth: Approx. 70 mm
• Connectable Conductor Cross-Section: Solid/Stranded 0.75…16 mm²
• Ambient Operating Temperature: –25 °C to +60 °C
• Protection Rating (Front): IP20 (with connected conductors)

Compliance & Certifications

• Manufactured by Siemens under its low-voltage protection device portfolio
• Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards for miniature circuit breakers
• Designed for use in residential, commercial and infrastructure installations

Applications

Ideal for branch-circuit protection in residential distribution panels, commercial lighting feeders, and small-load industrial installations requiring a compact, reliable 10 A circuit breaker with neutral switching and C-curve characteristic.
