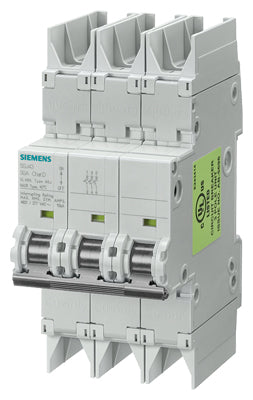

Siemens Circuit breaker, 3-pole, C, 10kA, 16A Part number 5SJ4316-7HG42

Product Overview

The Siemens 5SJ4316-7HG42 is a SENTRON 5SJ4 series miniature circuit breaker (MCB) designed for reliable protection against overload and short-circuit faults in low-voltage electrical systems. This 3-pole MCB has a rated current of 16 A, a C tripping characteristic suitable for general loads with moderate inrush currents, and a high breaking capacity of 10 kA at 400 V AC. It ensures dependable performance and safety in industrial and commercial distribution applications.

Key Features

• 3-pole miniature circuit breaker from the Siemens SENTRON 5SJ4 series
• Rated current: 16 A
• C tripping characteristic for general-purpose circuit protection
• Breaking capacity: 10 kA at 400 V AC
• Compact 3-module width suitable for DIN-rail mounting
• Halogen-free, sealable housing for added safety
• Consistent and precise tripping performance for dependable protection
• Designed for long mechanical and electrical lifespan

Technical Specifications

• Product Series: SENTRON 5SJ4
• Article Number: 5SJ4316-7HG42
• Number of Poles: 3 (3P)
• Rated Current (In): 16 A
• Rated Operational Voltage (Ue): 400 V AC / 60 V DC
• Tripping Characteristic: Type C
• Breaking Capacity (Icu): 10 kA at 400 V AC
• Insulation Voltage (Ui): 500 V
• Mounting Type: DIN-rail (EN 60715)
• Width: 54 mm (3 modular units)
• Operating Temperature Range: –25 °C to +55 °C
• Protection Class (front): IP20 with connected conductors

Compliance & Certifications

• Complies with IEC 60898 and IEC 60947-2 standards for miniature circuit breakers
• Manufactured and tested in accordance with Siemens quality and safety standards
• Designed for high-performance protection in low-voltage electrical networks

Applications

Ideal for use in residential, commercial, and industrial distribution boards and control panels where compact, reliable three-pole protection is required. Suitable for general-purpose circuits and systems with moderate inrush currents, including lighting, socket outlets, and small motor loads.
