Product Overview

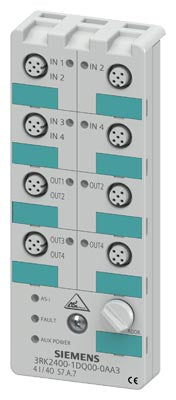

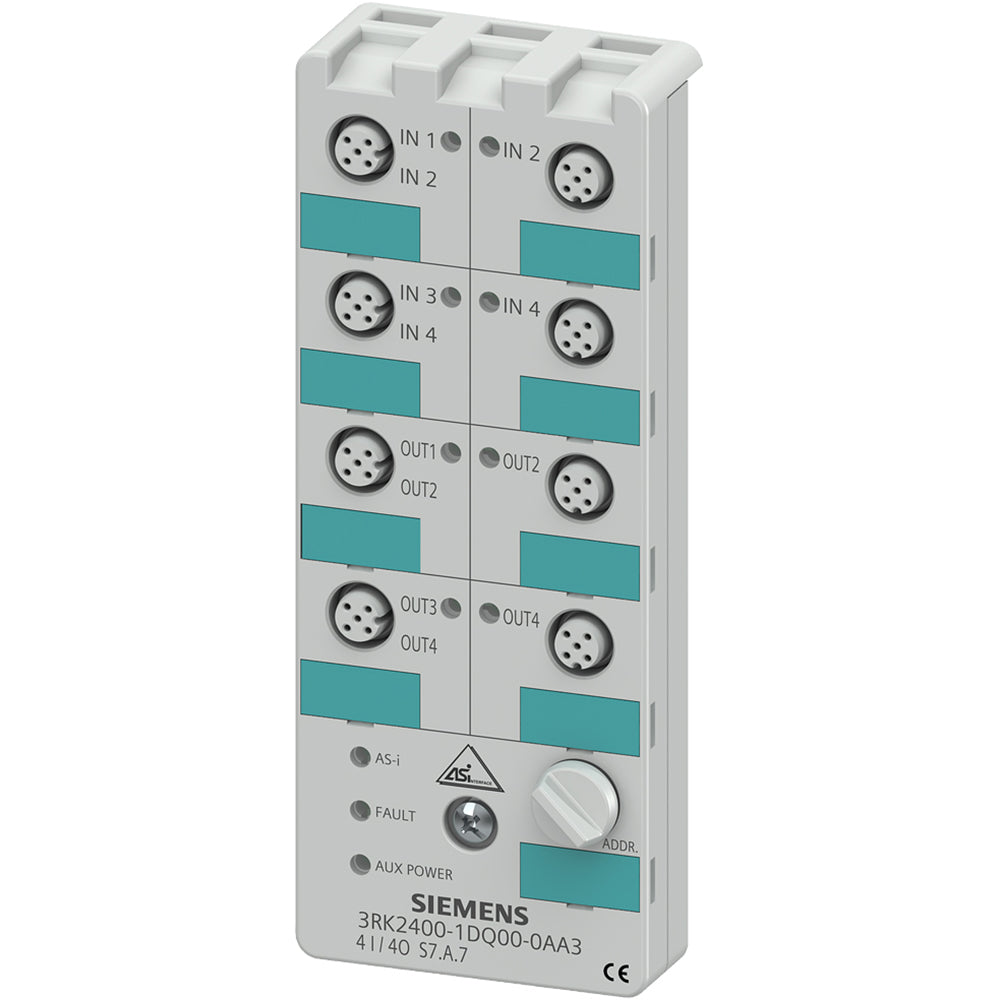

AS-i compact module K60 digital A/B slave, 4 DI/4 DQ, IP67

This AS-i compact module K60 digital A/B slave (Article Number: 3RK2400-1DQ00-0AA3) delivers robust performance for industrial automation applications with IP67 protection. The module features 4 digital inputs with a maximum current of 200 mA and 4 digital outputs rated at 2 A, 24 V DC with a maximum total current of 4 A for all outputs. The unit includes 8 x M12 sockets with Y-II assignment for versatile connectivity. Note: Mounting plate 3RK1901-0CA00 must be ordered separately.

Key Features

• 4 Digital Inputs (DI) with maximum 200 mA capacity
• 4 Digital Outputs (DQ) rated at 2 A, 24 V DC per output
• IP67 protection rating for harsh industrial environments
• AS-Interface A/B slave compatibility with specification 3.0
• 8 x M12 sockets with Y-II assignment for flexible connectivity
• Compact K60 design for space-efficient installation
• Maximum 4 A total current for all outputs combined

Technical Specifications

• Net Weight: 0.205 kg
• Packaging Dimensions: 75.00 x 160.00 x 40.00 mm
• Packaging Quantity: 1 piece
• Quantity Unit: 1 Piece
• Country of Origin: Czech Republic
• Input Voltage: 24 V DC
• Output Voltage: 24 V DC
• Protection Rating: IP67
• Operating Temperature: Standard industrial range
• Connection Type: 8 x M12 sockets (Y-II assignment)

Applications

• Industrial automation systems requiring distributed I/O
• Manufacturing environments with harsh conditions
• AS-Interface networks for sensor and actuator connectivity
• Process control applications requiring reliable digital I/O
• Machine control systems with AS-i fieldbus architecture
• Factory automation with IP67 protection requirements

Important Notes

• Mounting plate 3RK1901-0CA00 must be ordered separately for proper installation
• Compatible with AS-Interface specification 3.0
• Supports both A and B slave configurations
• Maximum total current of 4 A for all outputs combined

Product Classifications

• Product Lifecycle: PM300 Active Product
• eClass: 27-24-26-04 (versions 6-14)
• ETIM: EC001599 (versions 7, 8 & 9)
• UNSPSC: 32-15-17-05

Compliance & Certifications

• Export Control: AL: N / ECCN: N
• RoHS Compliance: Since 01.07.2006
• WEEE Take-Back Obligation: Yes

REACH Compliance

Information obligation imposed by Article 33, REACH Regulation: This product includes articles containing substances from the candidate list in concentrations higher than 0.1% weight by weight (w/w): Lead, Lead monoxide (lead oxide), and 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol. Based on current information, these substances do not pose risk when used as intended, including disposal. Please refer to product documentation for additional guidance.

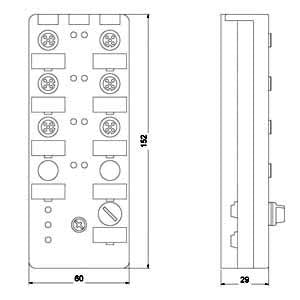

Download existing graphical data for this product:

For technical documentation and CAD files, please visit:

• Official Product Datasheet (PDF)
• Siemens Industry Mall Product Page
• AS-Interface Digital I/O Modules Documentation
• Siemens PARTcommunity for 3D CAD Models
• Siemens Technical Support Center for technical documentation requests
