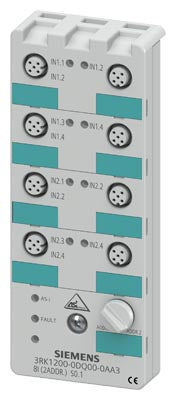

Siemens AS-i Compact module, K60 digital, 8DI, M12, 200mA, IP67 Part number 3RK1200-0DQ00-0AA3

Product Overview

The Siemens 3RK1200-0DQ00-0AA3 is an AS-Interface compact module in the K60 series, designed for field-installation digital I/O. It offers 8 digital inputs in a rugged IP67-rated housing, suitable for direct use in industrial environments. The module connects via M12 sockets and supports high-current input loads up to 200 mA.

Key Features

• AS-Interface compact module (K60 series) with 8 digital inputs
• Rated protection class: IP67 – for installation in harsh, outdoor or wash-down environments
• Eight M12 socket connections for sensor input wiring
• Max input current: up to 200 mA across all inputs for demanding sensor loads
• Y-II assignment of M12 pins standardised for ease of integration
• Mounting via a mounting plate (3RK1901-0CA00) required for wall or rail installation

Technical Specifications

• Product Series: AS-Interface Compact Module K60
• Article Number: 3RK1200-0DQ00-0AA3
• Number of Digital Inputs: 8
• Connection Type: M12 sockets (8 ×) with Y-II assignment
• Maximum Input Current: 200 mA (sensor supply) at ambient temperature 40 °C
• Supply Voltage (AS-Interface): 20 … 30 V DC
• Ambient Operating Temperature (Installation): –25 °C … +85 °C
• Storage/Transport Temperature: –40 °C … +85 °C
• Protection Class: IP67
• Dimensions (W × H × D): 60 mm × 152 mm × 29 mm
• Mounting Note: Requires mounting plate 3RK1901-0CA00 (ordered separately)

Compliance & Certifications

• Certified for AS-Interface operation in accordance with AS-Interface system requirements
• Designed by Siemens for distributed I/O installations in demanding industrial and outdoor field environments

Applications

Ideal for distributed automation systems where sensor-signals must be directly captured in the field under harsh conditions — for example in manufacturing plants, material-handling systems, outdoor installations, or wash-down zones. Suited to mounting close to the sensors thanks to its IP67 rating and robust M12 connectivity.
