Siemens Analog module, 2 inputs (passive) for analog signals Part number 3UF7400-1AA00-0

Product Overview

Analog module designed for precise signal processing and control applications. This module features 2 passive inputs and 1 output, specifically engineered to handle analog signals in the 0/4...20 mA range for SIMOCODE pro V basic unit integration.

Key Features

• Analog Inputs: 2 passive analog inputs (0-20mA / 4-20mA; 12-bit resolution)
• Analog Output: 1 analog output (30Vdc / 0-20mA / 4-20mA; 12-bit resolution)
• Signal Range: Designed for 0/4...20 mA analog signals
• Connection Type: Screw-clamp connections for secure wiring
• Compatibility: Specifically designed for SIMOCODE pro V basic unit
• Limitation: Maximum 1 analog module per base unit

Technical Specifications

• Resolution: 12-bit analog-to-digital conversion
• Input Configuration: 2 passive analog inputs
• Output Configuration: 1 analog output
• Degree of Protection: IP20
• Connection Method: Screw terminal connections
• Net Weight: 0.137 kg
• Packaging Dimensions: 28.00 x 108.50 x 147.00 mm
• Country of Origin: Germany

Applications

This analog module is essential for motor management applications requiring precise analog signal processing. It integrates seamlessly with SIMOCODE pro V basic units to provide analog input/output capabilities for process control, monitoring, and automation systems. The module enables connection of analog sensors and actuators to extend the functionality of the motor management system.

Design & Integration

• Mounting: Designed for integration with SIMOCODE pro V systems
• Configuration: Single analog module limitation per basic unit ensures optimal performance
• Interface: System-compatible connections for seamless integration
• Form Factor: Compact design optimized for industrial control panel installation

Standards Compliance

• Safety Standards: IEC 60947-1, IEC 60079-1, IEC 60079-7
• EMC Standards: IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
• Environmental: IEC 60068-2-6, IEC 60068-2-27, IEC 60721
• ATEX Compliance: Ex b EN 80079-37, ATEX, IECEx certified
• RoHS Compliant: Since May 1, 2012
• WEEE Directive: Take-back obligation compliant
• Export Control: AL: N / ECCN: 9N9999

Environmental Information

Contains substances from the REACH candidate list in concentrations higher than 0.1% weight by weight including Lead, Lead monoxide (lead oxide), 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol, and Lead titanium zirconium oxide. Based on current information, these substances do not pose risk when used as intended, including proper disposal. Refer to product documentation for additional details.

Product Identification

• EAN: 4011209628373
• UPC: 754554901923

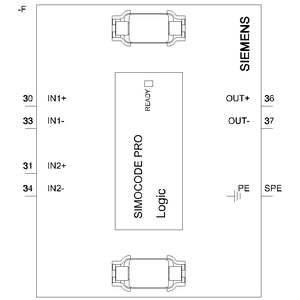

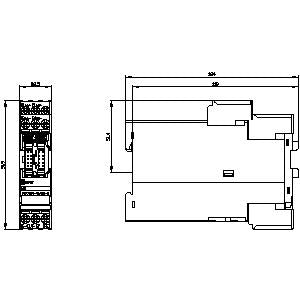

Download existing graphical data for this product:

• Technical Datasheet (PDF)
• SIMOCODE pro Manual Collection
• SIMOCODE pro System Manual
