Description

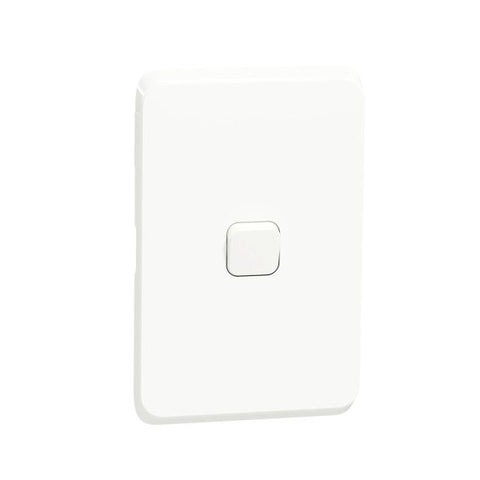

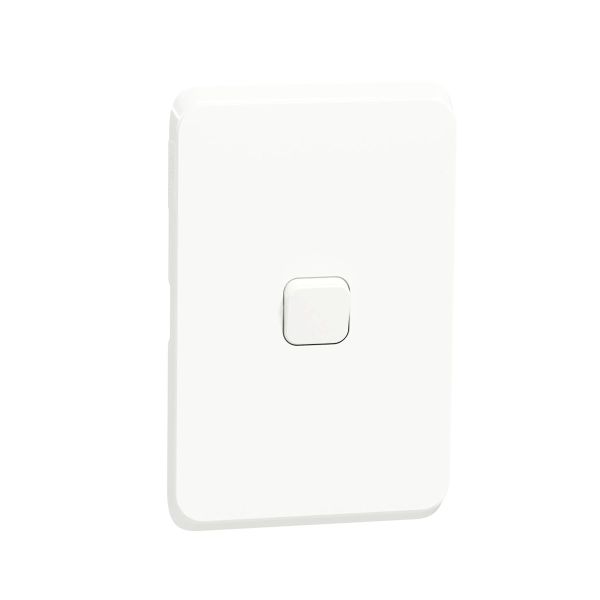

xThe XW Gridplate is a mounting plate accessory used with Schneider XW series control components, comprising one lever and a skin cover. It provides a fixing point and cover arrangement for panel-mounted control elements. It is typically used where an XW switch or control device is installed into a panel front, allowing the lever mechanism to be operated from outside the enclosure while the skin maintains a finished panel surface.
Specifications
x| Range of product | Iconic |
| Range | Iconic |
| Product or component type | Cover frame |
| Colour tint | White (XW) |
| Type of packing | Polybag |
| Quantity per set | Set of 5 |
| Range compatibility | Iconic switch |
| Device mounting | Flush |
| Number of rocker | 1 |
| Device composition | fixing frame |
| Installation direction | Vertical |
| fixing mode | By screws |
| Surface finish | Matt |
| Height | 120 mm |
| Width | 77 mm |
| Depth | 10 mm |
| Product weight | 0.061 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.0 cm |
| Package 1 Width | 7.8 cm |
| Package 1 Length | 12.0 cm |
| Package 1 Weight | 87.0 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 34.7 cm |
| Package 2 Width | 26.7 cm |
