Description

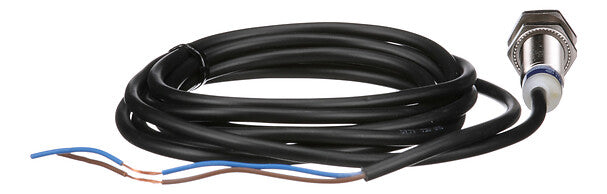

xThe XS6 is an M12 inductive proximity sensor with a brass housing and a sensing distance of 4 mm, designed to detect metal targets without physical contact. It operates on a 2-wire AC or DC supply across a 24–240 VAC/DC range, with a 2 metre cable and flush mountable design suited to compact panel or machine installations. The IP67 rating and -25°C to +70°C operating range make it suitable for use in dusty or wet industrial environments.
Key specifications
- Operating voltage: 24–240 VAC/DC
- Dimensions: Diameter 12 mm (M12), Length 54 mm
- Material: Brass
Specifications
x| Label | Inductive Proximity Sensor XS6 M12, L54mm, Brass, SN4mm, 24–240VAC/DC, Cable 2m |
Product Details
| Product Reference | XS612B1MAL2 |
| Sensor Type | Inductive Proximity Sensor |
| Housing Material | Brass |
| Dimensions | Diameter 12 mm (M12), Length 54 mm |
| Sensing Distance | 4 mm (SN4mm) |
| Operating Voltage | 24–240 VAC/DC |
| Output Type | 2-wire AC or DC |
| Cable Length | 2 meters |
| Mounting | Flush mountable |
Environmental Data
| Protection Rating | IP67 (dust tight and waterproof) |
| Ambient Operating Temperature | -25 °C to +70 °C |
Sustainability
| Net Zero Commitment | Schneider Electric aims to achieve Net Zero by 2050 |
| Initiatives | Use Better, Use Longer, Use Again (Circularity & Sustainability Campaign) |
