Description

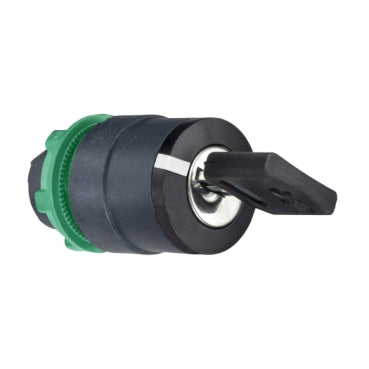

xThe XB5 is a key-operated selector switch head with three positions, designed for mounting in a 22mm panel cut-out. It is rated IP66, allowing use in environments where dust and water ingress must be excluded, and is suited to operation across a wide temperature range from -40°C to 70°C. Built to withstand up to one million operating cycles, it meets IEC 60947-5-1 and related national standards (CSA, UL, JIS), making it appropriate for control panels and machine interfaces requiring restricted, key-locked mode selection.
Key specifications
- IP rating: IP66 conforming to IEC 60529
- Operating temperature: -40…70 °C
Specifications
x| IP Rating / Detailed | IP66 conforming to IEC 60529 |
| Compliance/Certifications | CSA C22.2 No 14,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-1,JIS C8201-5-1,UL 508,JIS C8201-1 |
| Temperature: Operating | -40…70 °C |
| Part Depth (mm) | 72mm |
| Part Width (mm) | 29mm |
| Part Height (mm) | 29mm |
| Operating Period(Mech) | 1000000 cycles |
