Description

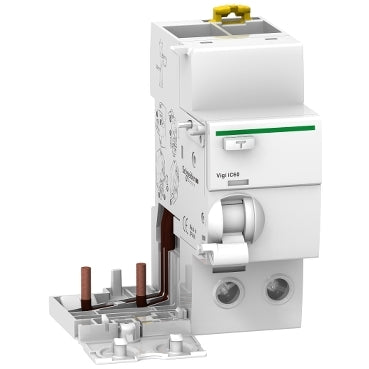

xThis add-on residual current device offers reliable earth-leakage protection in AC systems, with a 63 A rated current and 30 mA sensitivity. It is compatible with Acti9 iC60 systems, featuring clip-on mounting and independent tripping technology.
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | EN/IEC 61009-1,EN/IEC 61009-2-1 |
| Temperature: Operating | -5…60 °C |
| Part Depth (mm) | 73.5mm |
| Part Width (mm) | 72mm |
| Part Length (mm) | 14mm |
| Part Height (mm) | 91mm |
| Weight (g) | 165.0g |
| Tightening Torque (N.m) | 3.5 Nm |
| Connection Type | Tunnel type terminal downside for 1 cable(s) 1…35 mm² rigid without cable end,Tunnel type terminal downside for 1 cable(s) 1…25 mm² flexible without cable end,Tunnel type terminal downside for 1 cable(s) 1…25 mm² flexible with cable end |
| Max Frequency | 50/60 Hz |
| Type of Voltage | AC |
| Rated Operating Voltage | 230...240 V AC 50/60 Hz conforming to EN/IEC 61009-1 |
| Mounting Type | Clip-on |
