Description

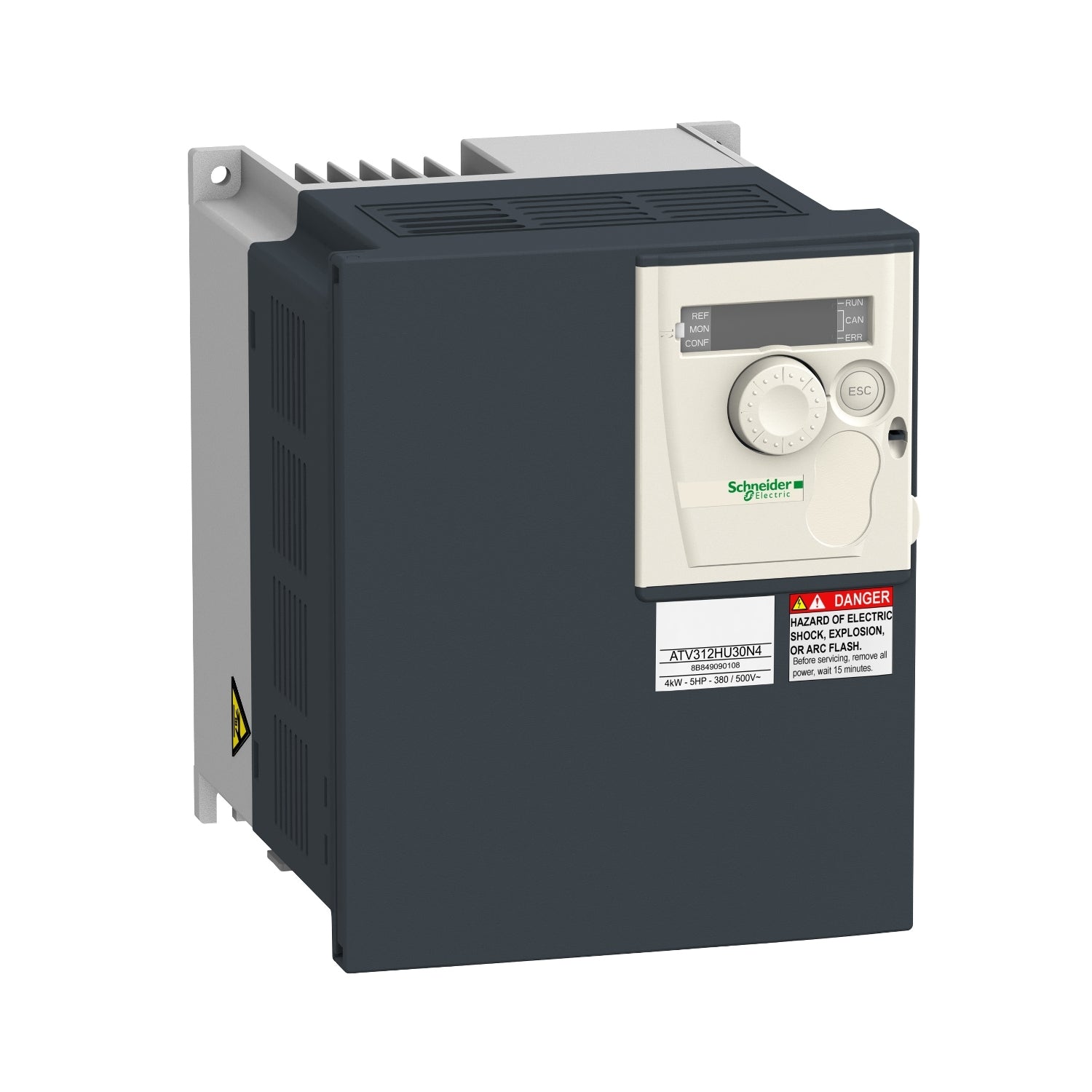

xThis variable speed drive controls three-phase induction motors rated at 3kW, operating from a 380 to 500V supply. It provides IP20 protection on its upper section when the cover plate is not fitted, and includes an RS485 multidrop serial link for communication with a control system. The unit is designed for panel mounting, with operation specified across -10 to 50°C without derating when the protective top cover is fitted, or -10 to 60°C with derating when it is removed.
Key specifications
- IP rating: IP20 on upper part without cover plate
Specifications
x| IP Rating / Detailed | IP20 on upper part without cover plate |
| Compliance/Certifications | IEC 61800-5-1,IEC 61800-3 |
| Temperature: Operating | -10…50 °C without derating (with protective cover on top of the drive) -10…60 °C with derating factor (without protective cover on top of the drive) |
| Part Depth (mm) | 152mm |
| Part Width (mm) | 142mm |
| Part Height (mm) | 184mm |
| Communication | port protocol |
| Supply Voltage | 380...500 V - 15...10 % |
| Interface | RS485 multidrop serial link |
