Description

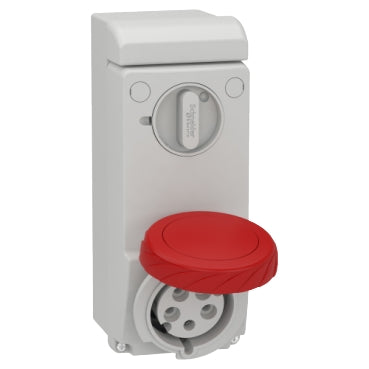

xThis is a wall-mounted interlocked socket outlet with a 3P+N+E configuration rated at 32A, intended for use in industrial control panels and installations requiring AC power distribution at 380...415 V. The IP65 rating conforming to IEC 60529 suits environments with dust and moisture exposure, while the nickel-plated brass sleeves and captive screw connections support reliable termination. It complies with IEC 60309-2 and IEC 60309-1, and is rated for operation across a temperature range of -25 to 40 °C.
Key specifications
- IP rating: IP65 conforming to IEC 60529
- Connection: Captive screws
- Operating temperature: 35 °C ( 86400 s ) -25…40 °C
- Colour: Grey (RAL 7035)
- Mounting: Wall-mounted
Specifications
x| IP Rating / Detailed | IP65 conforming to IEC 60529 |
| Compliance/Certifications | IEC 60309-2,IEC 60309-1 |
| Temperature: Operating | 35 °C ( 86400 s ) -25…40 °C |
| Part Depth (mm) | 153mm |
| Part Width (mm) | 103mm |
| Part Height (mm) | 255mm |
| Material: Product | Sleeves: nickel plated brass |
| Connection Type | Captive screws |
| Max Frequency | 50/60 Hz |
| Type of Voltage | AC |
| Rated Operating Voltage | 380...415 V |
| Mounting Type | Wall-mounted |
| Colour | Grey (RAL 7035) |
