Description

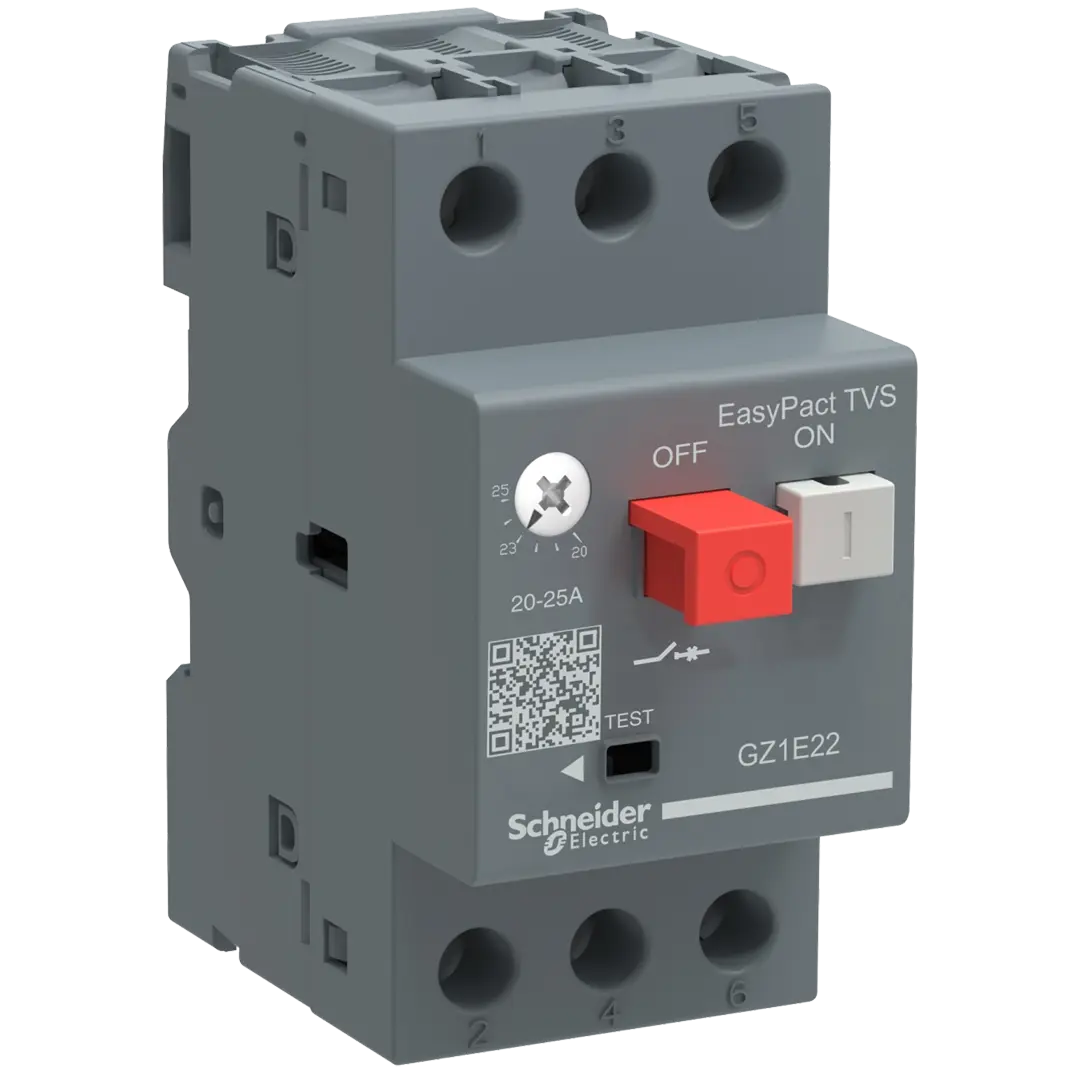

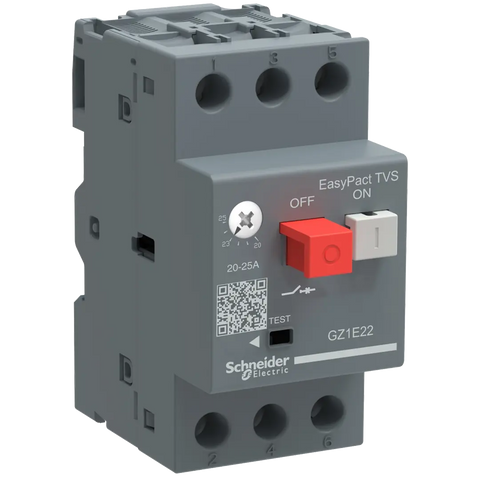

xThe Circuit breaker has a Motor device application and a Thermal-magnetic trip unit technology. It consists of three-poles and has rated service short-circuit breaking capacity of 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2. Its control type is a Push-button, a thermal protection adjustment range of 20…25 A, rated voltage of 690 V AC and a power dissipation of 2.5 W (per pole).
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | IEC 60947-4,IEC 60947-2 |
| Temperature: Operating | -20…60 °C |
| Part Depth (mm) | 78mm |
| Part Width (mm) | 44.5mm |
| Part Height (mm) | 89mm |
| Connection Type | Screw clamp terminals 2 1…6 mm² - cable stiffness: solid,Screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end,Screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end |
| Max Frequency | 50/60 Hz conforming to IEC 60947-2 |
| Type of Voltage | AC |
| Rated Operating Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mounting Type | By screws |
| Operating Period(Mech) | 100000 cycles |
| Operating Period(Elec) | 100000 cycles for AC-3 |
| Colour | Grey (RAL 7011) |
