Description

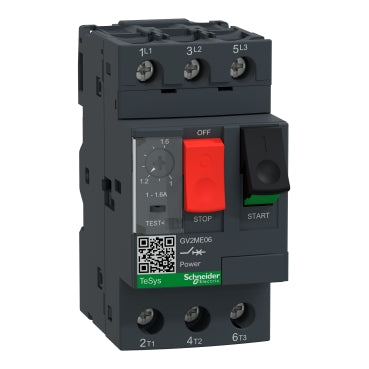

xThis motor circuit breaker is designed for motor protection in 3-phase systems, with a rated current range of 1 to 1.6A. It features thermal-magnetic tripping and is compatible with DIN rail and panel mounting.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | ATEX / BV / CCC / CSA / DNV-GL / EAC / EN/IEC 60947-2 / EN/IEC 60947-4-1 / LROS (Lloyds Register of Shipping) / RINA / UL / UKCA |
| Temperature: Operating | -20°C to 60°C |
| Part Depth (mm) | 78.5mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 89mm |
| Weight (g) | 260g |
| Packaging size / unit | 1 pc(s) |
| Tightening Torque | 1.7 Nm |
| Connection Style | 3 Pole |
| Voltage Frequency Range | 50 / 60 Hz |
| Rated Operating Voltage | 600 V |
| Current Rating / Rated Current | 1.6 A |
| Operating Period | Mechanical Durability 100000 cycles / Electrical Durability 100000 cycles for AC-3 at 415 V In / 100000 cycles for AC-3e at 415 V In |
