Description

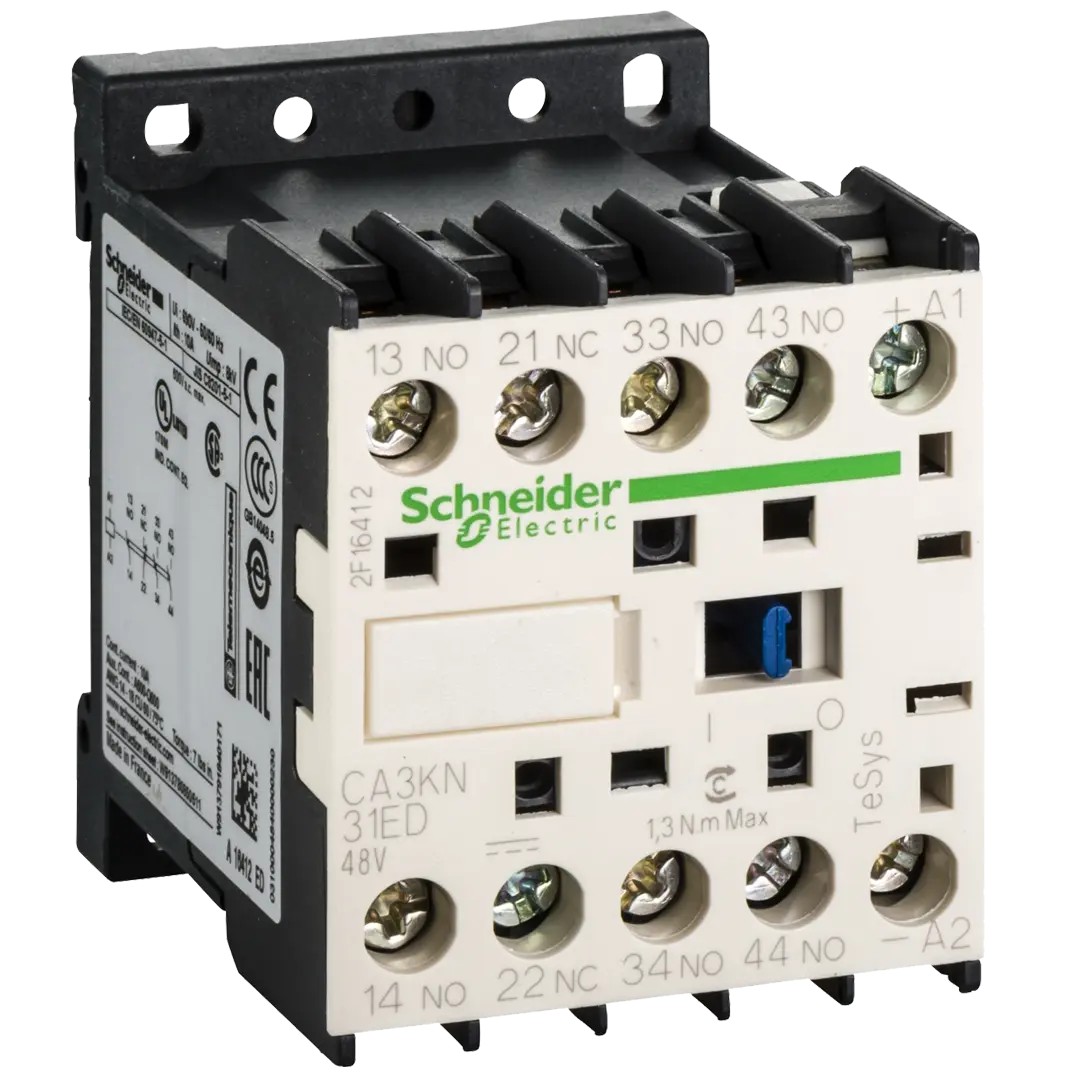

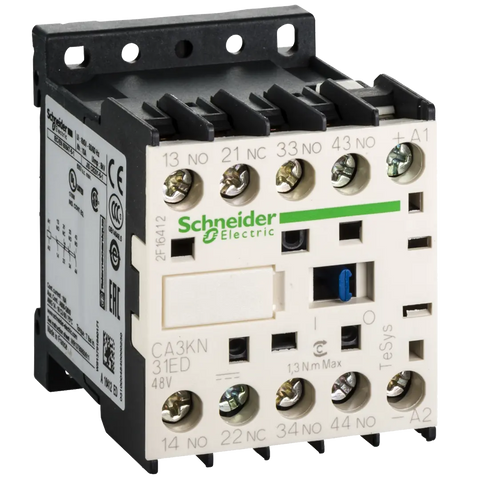

xSwitch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3 NO + 1 NC, a control circuit voltage 48 V DC a power circuit voltage 690 V and a maximum allowed intensity by the power circuit 110A.
Specifications
x| IP Rating / Detailed | IP2X |
| Compliance/Certifications | EN/IEC 60947-4-1,GB/T 14048.4,UL 60947-4-1,CSA C22.2 No 60947-4-1,JIS C8201-4-1 |
| Temperature: Operating | -25…50 °C |
| Part Depth (mm) | 57mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 58mm |
| Tightening Torque (N.m) | 1.3 Nm |
| Connection Type | Screw clamp terminals 1 cable(s) 1.5…4 mm²solid,Screw clamp terminals 2 cable(s) 1.5…4 mm²solid,Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible with cable end,Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end,Screw clamp terminals 1 cable(s) 0.34…1.5 mm²flexible with cable end,Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible without cable end |
| Rated Operating Voltage | <= 690 V <= 400 Hz |
| Power Consumption | in W |
| Operating Period(Mech) | 20 Mcycles |
