Description

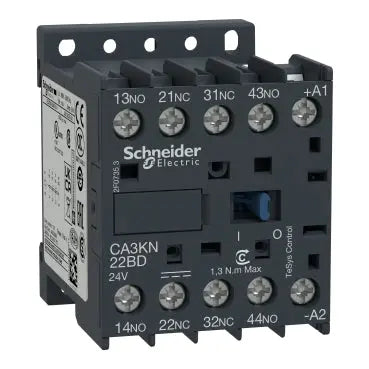

xThis TeSys K control relay features 2 NO + 2 NC contacts, a 24 V DC standard coil, and supports voltages up to 690 V. It is optimized for control circuits with a mechanical durability of 20 million cycles.
Specifications
x| IP Rating | IP2X |
| Compliance/Certifications | CSA C22.2 No 60947-4-1 / EN/IEC 60947-4-1 / GB/T 14048.4 / JIS C8201-4-1 / UL 60947-4-1 |
| Temperature: Operating | -25°C to 50 °C |
| Part Depth (mm) | 57mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 58mm |
| Weight (g) | 225g |
| Packaging size / unit | 1 / 40 / 640 pc(s) |
| Tightening Torque | 1.3 Nm |
| Connection Type | Screw clamp terminals 1 cable(s) 1.5 - 4 mm²solid / Screw clamp terminals 2 cable(s) 1.5 - 4 mm²solid / Screw clamp terminals 1 cable(s) 0.75 - 4 mm²flexible with cable end / Screw clamp terminals 2 cable(s) 0.75 - 4 mm²flexible without cable end / Screw clamp terminals 1 cable(s) 0.34 - 1.5 mm²flexible with cable end / Screw clamp terminals 2 cable(s) 0.34 - 1.5 mm²flexible without cable end |
| Rated Operating Voltage | <= 690 V <= 400 Hz |
| Mounting Type | Plate / Rail |
| Power Consumption | 3 W |
| Operating Period | 20 Mcycles (mechanical) |
| Warranty | 18 Months |
